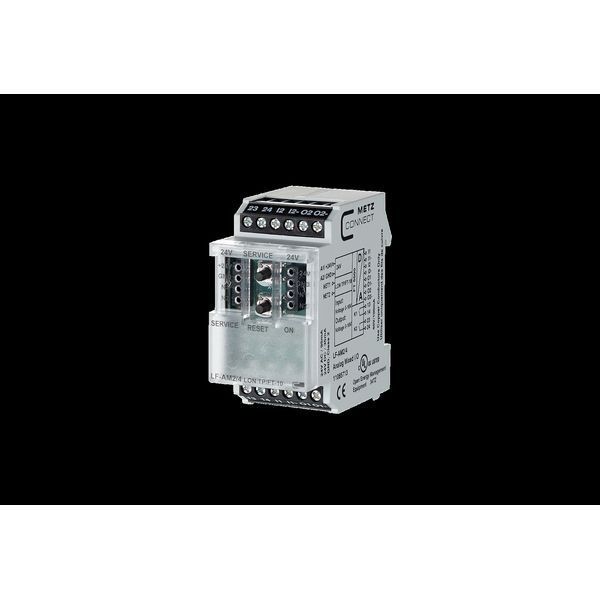

Mixed I/O Module LF-AM2/4 LON

Order only

EAN: 4250184135791

MPN: 11085713

Package: 1

Price (excl. VAT)

518,37 €

per unit

MOQ: 1

EDT to our warehouse: 4-6 weeks

This price is valid until next price list or while stock lasts

Technical Information

Item condition	New
Manufacture name	LF-AM2/4 LON
Brand	METZ CONNECT
Categories	Bus System Devices (KNX & Modbus)
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8517 6200 00
ETIM	EC001584
Mounting method	DRA (DIN-rail adapter)
Rated current	0.035 A
Bus system KNX	No
With bus connection	Yes
Width in number of modular spacings	2
Degree of protection (IP)	IP20
Bus system KNX radio	No

Packing details

Packing level 1

4250184135791, 4250184135791

Other Technical data

Number of inputs	2
Rated operating voltage	24 V
Bus system radio frequent	No
Bus system Powernet	No
Max. number of switching contacts	2
Remote operation possible	No
Ethernet	No
External signal voltage necessary	No
Other bus systems	None
Number of input channels	2
Number of output channels	4
Bus system LON	Yes
Suitable for C-load	No
Input voltage	10 V
LED controlling	Yes
Different phases connectable	No
Local operation/hand operation	Yes
With switch function	No
With LED indication	Yes

Description

The LON I/O module with 2 analog inputs, 2 analog outputs and 2 digital outputs. It is suitable for controlling, for example, motorized vent valves and switching on alarm at the set threshold value. The inputs and outputs are scanned and activated by SNVT network variables. The analog inputs can be scanned simultaneously. The analog outputs can be activated proportionally, or previously defined voltage values can be adjusted. Both digital outputs can be activated individually or as a function of an adjustable threshold value. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.Connection with screw type terminal blocks
