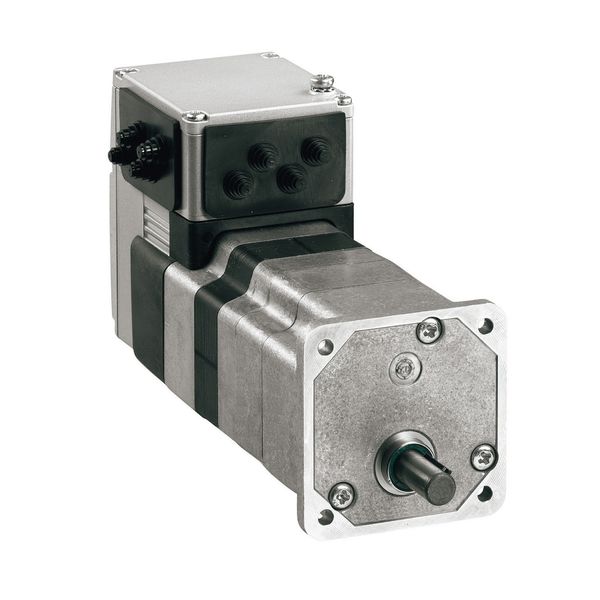

LEXIUM INTEGRATED DRIVE, BLCD MOTOR, 24
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
913,07 €
EAN: 3389119222327
MPN: ILE1F661PB1A2
Package: 1
Pallet: 12
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | LEXIUM INTEGRATED DRIVE, BLCD MOTOR, 24 |
| Brand | Schneider Electric |
| Categories |
Standard Electric Motors
|
| Country of origin | DE |
| Harmonized System Code | 8501 3100 99 |
| Model | Rotary current synchronous motor |
| Voltage type | DC |
| Rated current | 10 A |
| Rated voltage | 24 V |
| Housing material | Other |
| Rated frequency | 50-60 Hz |
| Rated performance at rated frequency | 0 kW |
| Degree of protection (IP) | IP54 |
| Motor efficiency class | Other |
Packing details
| Packing level 1 | 3389119222327 |
| Packing level 2 | 3389119222327 |
Other Technical data
| Number of phases | 1 |
| Construction type | Other |
| Number of poles | 6 |
| Operating temperature | 0-50 °C |
| Rated rotational speed at rated frequency | 133 1/min |
| Duty cycle | Other |
| Frame size according to IEC | 0 mm |
| Full-load efficiency | 0 % |
| Starting current ratio | 0 |
| Starting torque ratio | 0 |
| Breakdown torque ratio | 0 |
| Voltage anti-condensation heater | 0 V |
| Output power anti-condensation heater | 0 W |
| With positive temperature coefficient resistor (PTC) | No |
| With resistance temperature detector (RTD) | No |
| Intrinsic safety (IS) | None |
| Overload capability | No |
| Cooling method | Air |
| Shaft end type | Other |
| Vacuum pressure impregnation (VPI) | Other |
| Suitable for frequency control | No |
| Bearing | Other |
| Insulation class according to IEC | Other |
| With anti-condensation | No |
| Nominal torque | 5.8 Nm |
| Power factor | 0 |
Downloads
Description
This Lexium ILE integrated servo drive works at a rated supply voltage of 24V or 36V dc. This integrated drive range offers the motor technologie to meet the requirements for dynamic performance, flexibility or precision. It is equipped with a DC brushless motor which has a high automatic holding torque, which makes the use of an holding brake unnecessary in the majority of applications. Its high holding torque totally eliminates the need for electrical cabinets. The control electronics incorporated in the ILE1 drive provide absolute encoder functionality. It has been developed in accordance with strict international standards and recommendations for variable speed electrical power drive products. In particular IEC/EN 61800-3 (immunity to disturbance related to high frequency signals connected by cables and transmitted) and IEC/EN 50178 (vibration resistance).
