LENA VF 300 2400 830/35/40/57/65 MWS - Wall-/ceiling luminaire, IP54

Name: LENA VF 300 2400 830/35/40/57/65 MWS - Wall-/ceiling luminaire, IP54
Brand: THORNeco
Price: 20.440 EUR
Availability: PreOrder

Order only Minimal order quantity: 120

Price (excl. VAT):

20,44 €

This price is valid until 31.01.26

Subtotal: 2 452,80 € MOQ: 120

EAN: 9010757276192

MPN: 96638167

Package: 1

Pallet: 120

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	LENA VF 300 2400 830/35/40/57/65 MWS - Wall-/ceiling luminaire, IP54
Brand	THORNeco
Categories	Wall and ceiling luminaires Surface mounting lamps
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	9405 1140 00
Colour housing	White
Colour rendering index CRI	80-89
Height/depth	58 mm
Lamp type	LED not exchangeable
Impact strength	IK08
Nominal voltage	220-240 V
Degree of protection (IP)	IP54
Beam angle	Extreme wide beam >80°
Colour temperature	3000-6500 K
Max. system power	22 W
Rated luminous flux according to IEC 62722-2-1	2400 lm
Luminaire efficacy	110 lm/W

Packing details

Packing level 1	9010757276192, 9010757276192
Packing level 2	9010757276192
Packing level 3	9010757276192

Other Technical data

Protection class	II
Outer diameter	300 mm
Lamp holder	Other
Conductor cross section	2.5 mm²
Connection type	Push-in clamp
Voltage type	AC
With movement sensor	Yes
Type of grid	None
Type of control gear	LED operating device current-controlled
With light sensor	Yes
Suitable for suspended mounting	No
Housing material	Plastic
Suitable for light line configuration	No
Suitable for emergency lighting	No
Light outlet	Direct
Light sharing	Asymmetric
Material cover	Plastic, opal
With light source	Yes
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	No
Covering of the luminaire with thermally insulating material possible	Yes
Suitable for number of lamps	1
Suitable for built-in mounting	No
With control gear	Yes
Suitable for workplace according to EN 12464-1	No
Suitable for surface mounting	Yes
Colour of light	White
Constant light output (CLO)	No
IFTTT support available	No
Type of wiring	Suitable for through wiring
Rated life time L70/B50 at 25 °C	74000 h
Colour consistency (McAdam ellipse)	SDCM5
Total harmonic distortion	20
Photobiological safety according to EN 62471	RG0
Rated ambient temperature according to IEC62722-2-1	-20-40 °C
Filament test according to IEC 60695-2-11	850 °C - 30 s
Dimming 0-10 V	No
Dimming 1-10 V	No
Dimming DALI	No
Dimming DMX	No
Dimming potentiometer (integrated)	No
Dimming LineSwitch	No
Dimming manufacturer's proprietary system	Yes
Dimming mains voltage modulation	No
Dimming phase cut-off	No
Dimming phase cut-on	No
Dimming programmable	No
Dimming RF	No
Dimming Sine Wave Reduction	No
Dimming Touch and Dim	No
Dimming Zigbee	No
Dimming with push-button	No
No dim function	No
Dimming DSI	No
Unified Glare Ratio (UGR)	25
Operation by Bluetooth	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
Max. number of luminaires per miniature circuit breaker C16	85
Max. number of luminaires per miniature circuit breaker B16	74
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)	80 %
Colour temperature adjustable	Positions
Luminous flux adjustable	Positions
Beam angle adjustable	No
Exchangeable control gear	Yes
Suitable for ceiling mounting	No
Power factor	0.9

Downloads

Deep link product page Product data sheet Declaration RoHS

Description

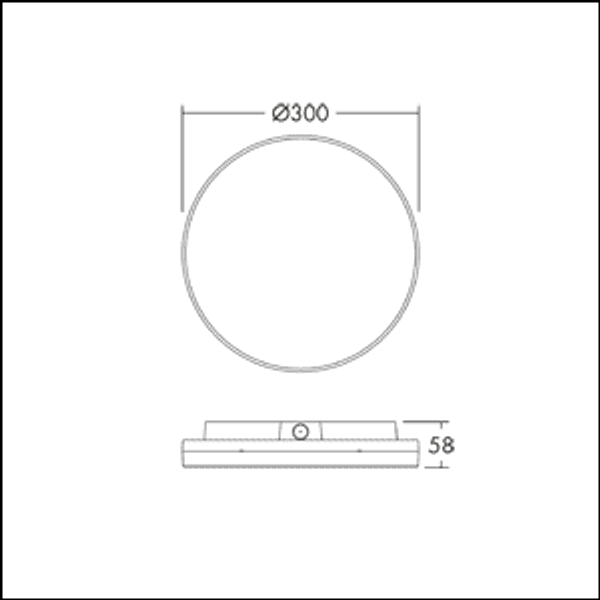

Slim line Wall-/ceiling luminaire, IP54, with opal diffuser for surface and semi-recessed installation in indoor and covered outdoor applications. Made of high quality UV-resistant polycarbonate. Unique design with screwless locking mechanism for fast and comfortable installation, whilst maintaining vandal proof security against unauthorized opening access to the driver. Impact strength: IK08. Total luminous flux: 2400 lm, Luminaire input power: 22 W, Lamp efficacy: 109 lm/W, Colour rendering Ra > 80, colour temperature 3000/3500/4000/5700/6500 K adjustable via switch. Lifetime: 50.000h L80, Chromaticity tolerance (initial MacAdam): 5, Body colour: white. Complete with integrated microwave presence and daylight sensor. Available accessory: Plug&Play Emergency kit for 3 hour emergency conversion (self- and manual test). Suitable for conduit, BESA and Nordic installation. Variable flux, Input power adjustable on site by 4 step (FLEX1: 2400 lm (22W), FLEX2: 1800 lm (16W), FLEX3: 1200 lm (11W), FLEX4: 800 lm (7,5W)). Detailed power and CCT setting information available on www.THORNeco.com. Dimensions: Ø300 x 58 mm, weight: 0.73 kg.
