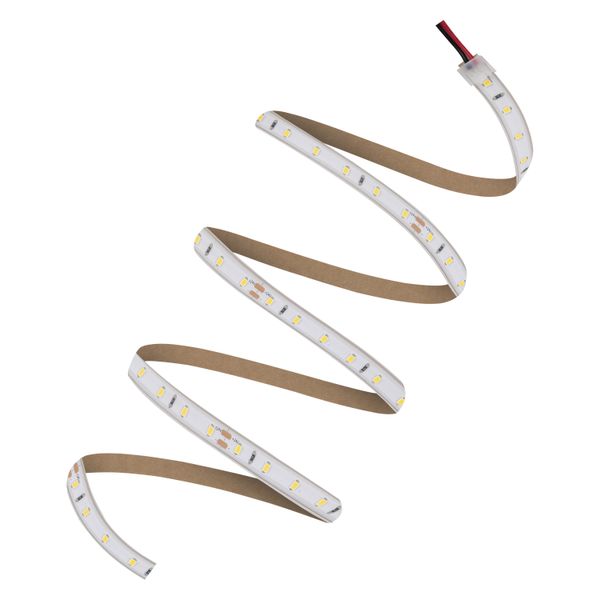

LED STRIP V 2000 P -2000/865/5/IP66
Technical Information
| Item condition | New |
| Manufacture name | LED STRIP V 2000 P -2000/865/5/IP66 |
| Brand | LEDVANCE |
| Categories |
Light ribbon-/hose/-strip
|
| Country of origin | CN |
| Harmonized System Code | 8539 5100 00 |

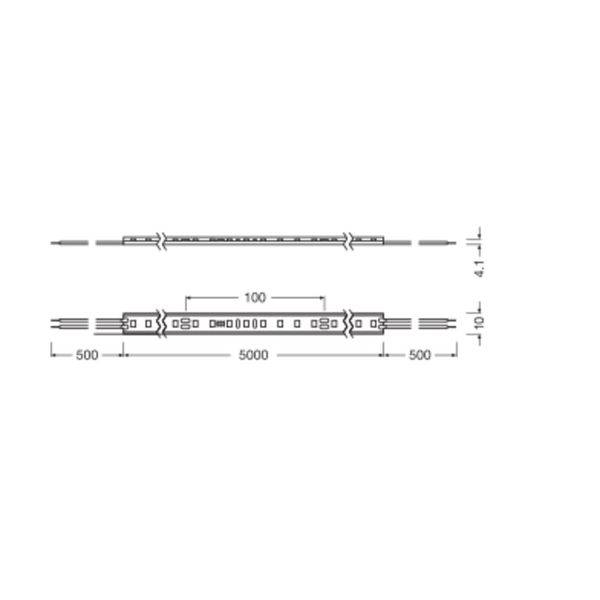

| Width | 10 mm |

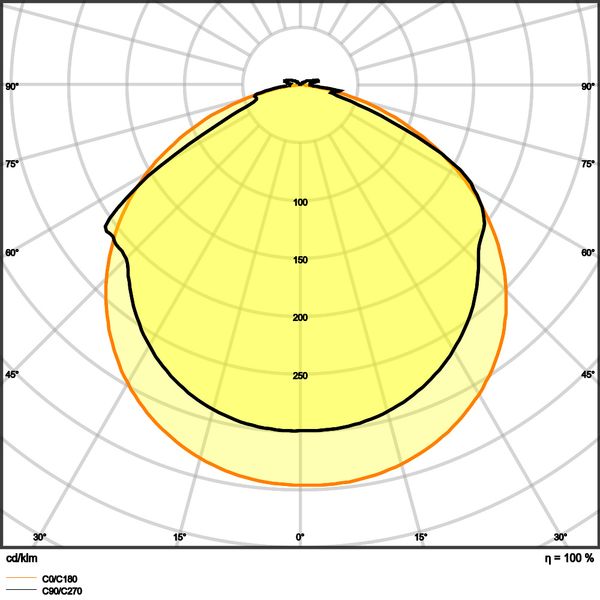

| Beam angle | 120 ° |
| Colour rendering index CRI | 80-89 |
| Length | 5000 mm |
| Height/depth | 4.1 mm |
| Lamp type | LED not exchangeable |
| Degree of protection (IP) | IP66 |
| Lamp power per meter | 16 W |
| Lamp voltage | 24 V |
| Colour temperature | 6500 K |
| Luminous flux per meter | 1710 lm |
Packing details
| Packing level 1 | 4058075705746 |
| Packing level 2 | 4058075705753 |
| Packing level 3 | 4058075705746 |
Other Technical data
| Mounting method | Surface mounting |
| Model | Strip |
| Conductor cross section | 0.5 mm² |
| Connection type | Push-in clamp |
| Voltage type | DC |
| Self-adhesive | Yes |
| Suitable for dimmer | No |
| Number of poles | 2 |
| With protective cover | Yes |
| Lowest bending radius | 30 mm |
| Length of particular segments | 100 mm |
| With connection set | No |
| With end piece | No |
| Number of nodes per meter | 70 |
| Max. system power | 70 W |
| Constant light output (CLO) | Yes |
| IFTTT support available | Yes |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 30000 h |
| Degree of protection (NEMA) | Other |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
Downloads
Description
IP66 protected LED strips with 2000 lm/m for general applications. Product features: Flexible and cuttable LED strip. Smallest cuttable unit: 100 mm. Lifetime (L70/B50): up to 30,000 h at Tc max.: 75°C. Luminous flux: 2000 lm/m. Color rendering index Ra: > 80. Large range of color temperatures: from warm white to cool daylight. Type of protection: IP66. Dimmable with suitable drivers, see also www.ledvance.com/dim. UV restistance (acc. IEC 60068-2-5). Salt mist resistance (acc. IEC 60068-2-52). Product benefits: Great scope of design options due to long and flexible LED strips. Easy installation, no tools required for connection. Easy mounting on many smooth surfaces thanks to self-adhesive tape. Maximum flexibility due to large range of accessories. Suitable for use in damp conditions thanks to high type of protection. Areas of application: General indoor illumination. General outdoor illumination. Decorative illumination. Private living areas. Equipment / Accessories: Connectors, profiles and covers for several mounting options available. Endcaps have to be ordered separately.
