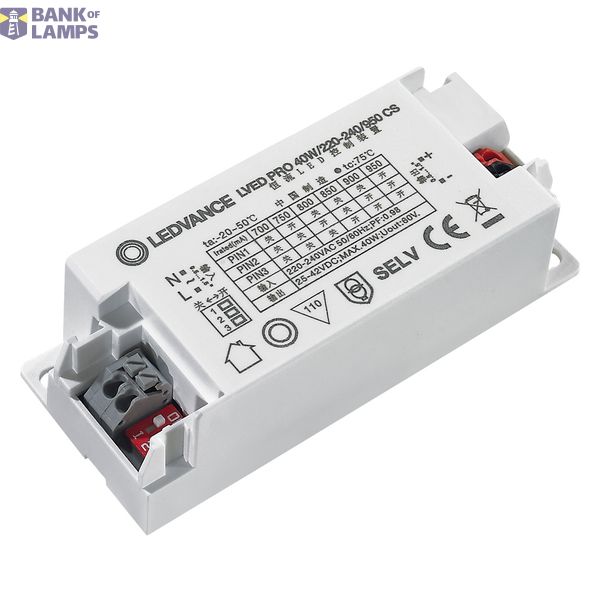

LEDVANCE LED DRIVER PRO CS 40/220…240/950 CS
Discontinued
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LEDVANCE LED DRIVER PRO CS 40/220…240/950 CS |
| Brand | LEDVANCE |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| ETIM | EC002710 |
| Width | 40 mm |
| Height | 27 mm |
| Housing | Plastic housing |
| Length | 146 mm |
| Output voltage | 25-42 V |
| Degree of protection (IP) | IP20 |
| Suitable for constant current | Yes |
| Suitable for constant voltage | No |
| No dim function | Yes |
Packing details
| Packing level 1 | 4058075240933 |
| Packing level 2 | 4058075240940 |
Other Technical data
| Protection class | II |
| Suitable for outdoor use | No |
| Suitable for DC-voltage (primary side) | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming DSI | No |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
Downloads
Description
Constant Current - Indoor - on/off. Product features: Lifetime: up to 50,000 h (at max. tc temperature). Low ripple current < 4 %. Power factor: 0.95. Protection class II. High reliability thanks to long lifetime. Safety according to IEC/EN 61347-1, IEC/EN 61347-2-13, GB 19510.1, GB 19510.14. EMC immunity according to CISPR15/EN 55015, IEC/ EN 61547, IEC/EN61000-3-2, GB/T17743, GB 17625.1. Performance according to IEC 62384. With CCC, CE, CB certificate. RoHS compliant. Product benefits: High flexibility due to adjustable output currents via dip switch. Small housing for flexible luminaire designs. High quality of light thanks to low output ripple current. Areas of application: Suitable for indoor SELV installations. Suitable for LED luminaires and LED modules. Suitable for build-in luminaries with adjustable current setting. Suitable for luminaires of protection class II. Hotels, shops, hospitality, residential interiors. Offices. Suitable for indoor applications.
