LEDVANCE HIGH BAY PRO 150 W 4000 K 90 ° GEN2
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LEDVANCE HIGH BAY PRO 150 W 4000 K 90 ° GEN2 |
| Brand | OSRAM |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC001716 |
| Colour rendering index CRI | 80-89 |

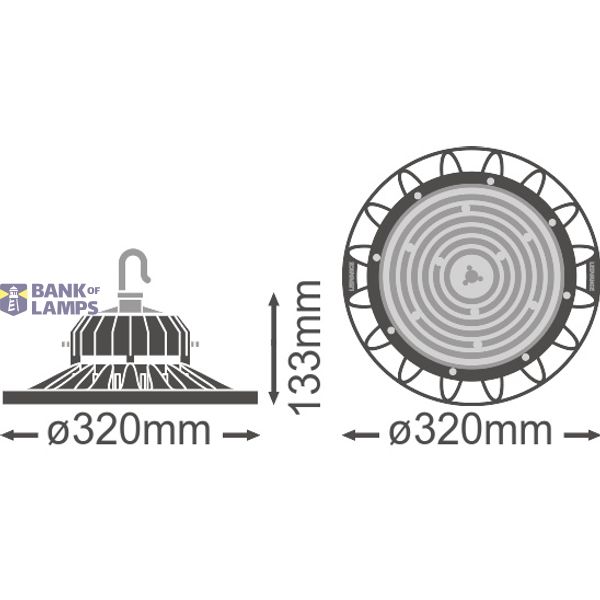

| Height/depth | 133 mm |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Colour temperature | 4000 K |
| Max. system power | 150 W |
| Rated luminous flux according to IEC 62722-2-1 | 20250 lm |
| Luminaire efficacy | 135 lm/W |
Packing details
| Packing level 1 | 4058075073005 |
Other Technical data
| Protection class | II |
| Outer diameter | 320 mm |
| Connection type | Other |
| Colour housing | Black |
| Voltage type | AC |
| Ball-proof | No |
| Housing material | Aluminium |
| Suitable for emergency lighting | No |
| Emergency power supply integrated | No |
| With protective cover | No |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| With control gear | No |
| Colour of light | White |
| Constant light output (CLO) | No |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Rated ambient temperature according to IEC62722-2-1 | -30-50 °C |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming DSI | No |
| Suitable for auxiliary lamp | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Exchangeable control gear | No |
Downloads
Description

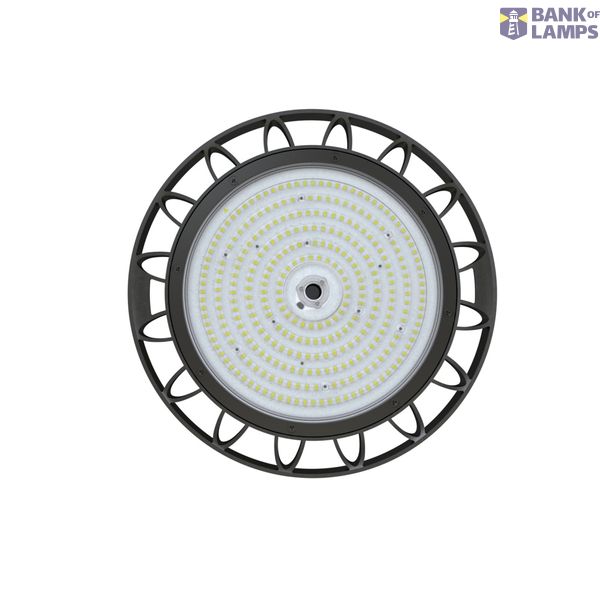

LED high-bay luminaires. Product features: Four versions with different luminous flux available. Luminous efficacy: up to 135 lm/W. Lifetime: up to 50,000 h. Beam angle: 90°×90° or 70°×70°. Color rendering index Ra: ≥ 80. Power factor: > 0.9. Impact resistance: IK08. Type of protection: IP65. Robust die-cast aluminum housing. Product benefits: Equipment for suspended and pole mounting included. Unique heat sink design with air channels to increase system reliability. Low maintenance and operation costs due to long lifetime of LED. Single piece lens, color stable and shape-retaining even at high temperatures. High efficiency and reliability. Areas of application: Industrial and storage facilities. Production and assembly facilities. Shopping malls. Supermarkets. Loading docks, access areas. Aircraft hangers. Train stations. Airports, stations. Equipment / Accessories: Clips for optional surface mounting available.
