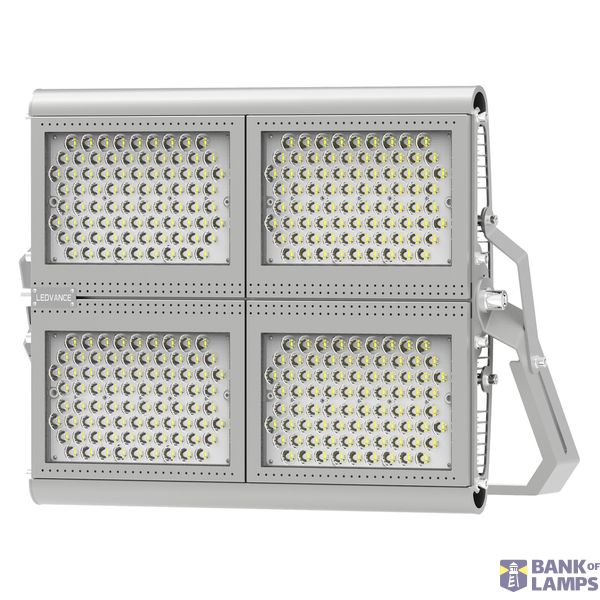

LEDVANCE FLOODLIGHT PFM 1000 W 5700 K 30 °
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LEDVANCE FLOODLIGHT PFM 1000 W 5700 K 30 ° |
| Brand | OSRAM |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 4239 00 |
| ETIM | EC001744 |
| Width | 621 mm |
| Colour rendering index CRI | 70-79 |
| Length | 710 mm |
| Height/depth | 109.5 mm |
| Impact strength | IK08 |
| Nominal voltage | 100-240 V |
| Degree of protection (IP) | IP66 |
| Beam angle | Medium beam 21-40° |
| Colour temperature | 5700 K |
| Max. system power | 1000 W |
| Rated luminous flux according to IEC 62722-2-1 | 120000 lm |
| Luminaire efficacy | 120 lm/W |
Packing details
| Packing level 1 | 4058075191655 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Connection type | Push-in clamp |
| Colour housing | Grey |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for wall mounting | Yes |
| Built-in width | 507.8 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Built-in length | 710 mm |
| Light outlet | Direct |
| Emergency power supply integrated | No |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Surface brushed | No |
| Adjustability | Not adjustable |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 120000 lm |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Colour consistency (McAdam ellipse) | SDCM6 |
| Total harmonic distortion | 20 |
| Rated ambient temperature according to IEC62722-2-1 | -30-50 °C |
| Dimming 0-10 V | No |
| Dimming 1-10 V | Yes |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming depending on control gear | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 2 |
| Max. number of luminaires per miniature circuit breaker B16 | 2 |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | No |
| Built-in height/depth | 109.5 mm |
Downloads
Description
Floodlights. Product features: Color temperature: 3,000 K or 5,000 K. Color rendering index Ra: ≥ 80. Impact resistance: IK08. Available in matt white and matt black. Product benefits: Energy savings of up to 90 % compared to halogen lamp floodlights. Optimized weight and size due to compact design. Very homogenous light. Areas of application: Replacement for floodlights with halogen lamps. Car parks and underpasses. Garages. Public areas. Building facades. Construction areas.
