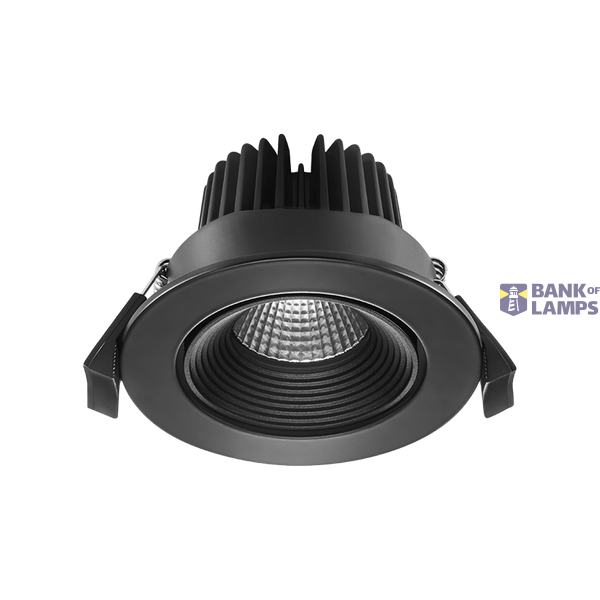

LEDSpotRA-Ava-E2 7W-Dim-2700-30D-BL
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LEDSpotRA-Ava-E2 7W-Dim-2700-30D-BL |
| Brand | Opple |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC001744 |
| Width | 85 mm |
| Length | 85 mm |
| Height/depth | 53 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK02 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP44 |
| Beam angle | Medium beam 21-40° |
| Colour temperature | 2700 K |
| Max. system power | 7 W |
| Rated luminous flux according to IEC 62722-2-1 | 520 lm |
| Luminaire efficacy | 74 lm/W |
Packing details
| Packing level 1 | 6931783004302 |
Other Technical data
| Protection class | II |
| Outer diameter | 85 mm |
| Reflector | High-gloss |
| Lamp holder | None |
| Colour housing | Black |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| Suitable for wall mounting | No |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Light sharing | Symmetric |
| Material cover | Plastic, transparent |
| Emergency power supply integrated | No |
| With light source | Yes |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for surface mounting | No |
| Surface brushed | No |
| Colour of light | White |
| Adjustability | Swivelling |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| IFTTT support available | No |
| Luminous flux | 520 lm |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Rated ambient temperature according to IEC62722-2-1 | -20-40 °C |
| Filament test according to IEC 60695-2-11 | 750 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | Reflector |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 314 |
| Max. number of luminaires per miniature circuit breaker B16 | 314 |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Built-in diameter | 68-76 mm |
| Suitable for ceiling mounting | No |
| Power factor | 0.9 |
Downloads
Description
Modern reccessed LED Spot with 25° tilting angle for perfect scene setting. Standard fully IP44, ideal for damp applications like bathrooms. Beam angle of 30° provides an accent lighting effect. Comforting warm white light tone (2700K) perfect for creating cozy ambience .
