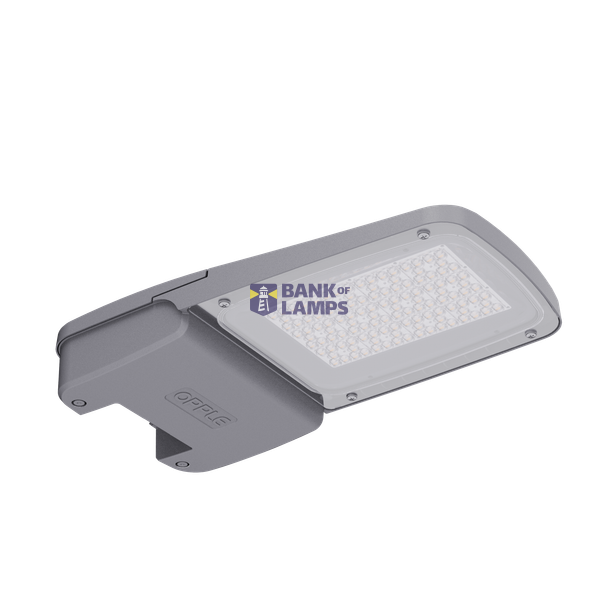

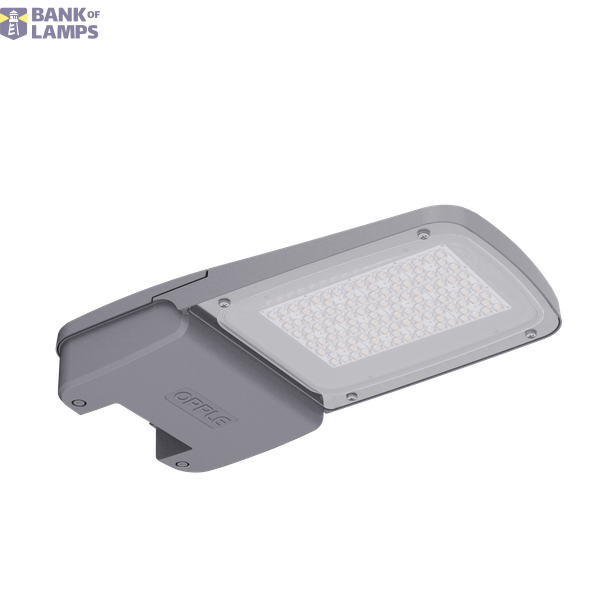

LEDRoad-St-P2 Re488-40W-740-XAS
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LEDRoad-St-P2 Re488-40W-740-XAS |
| Brand | Opple |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 4239 00 |
| ETIM | EC000062 |
| Width | 255 mm |
| Colour rendering index CRI | 70-79 |
| Length | 488 mm |
| Height/depth | 100 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 4000 K |
| Max. system power | 40 W |
| Rated luminous flux according to IEC 62722-2-1 | 6000 lm |
| Luminaire efficacy | 150 lm/W |
Packing details
| Packing level 1 | 6941497780874 |
Other Technical data
| Mounting method | Side entry |
| Protection class | II |
| Lamp holder | None |
| Colour housing | Grey |
| Voltage type | AC |
| Type of control gear | LED operating device current-controlled |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| With connection cable | No |
| With light source | Yes |
| With control gear | Yes |
| Adjustable optics | No |
| Suitable for spigot size | 48-76 mm |
| Nominal current | 810 mA |
| Colour of light | White |
| Remote control | None |
| With radio control | No |
| With light regulation program control | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM4 |
| Rated ambient temperature according to IEC62722-2-1 | -25-45 °C |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Focal lens |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Exchangeable control gear | Yes |
| Power factor | 0.9 |
Downloads
Description
Easy installation and maintenance via openable driver compartment . Flexible and adjustable pole connector (60mm & 76mm) for both side entry and pole top mounting (order separately).
