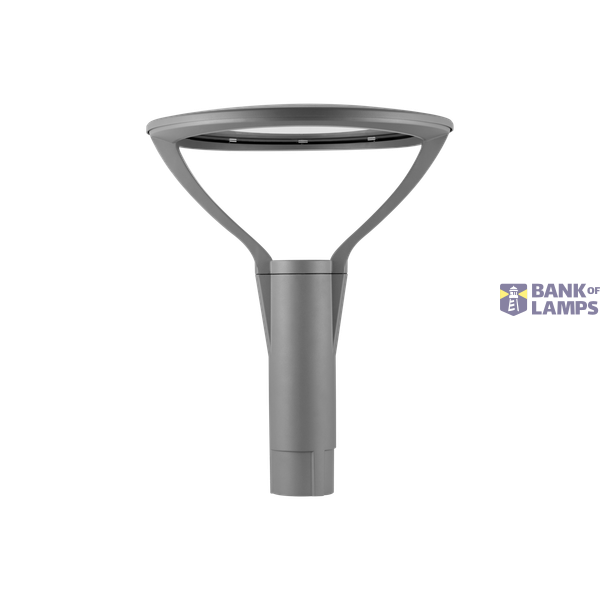

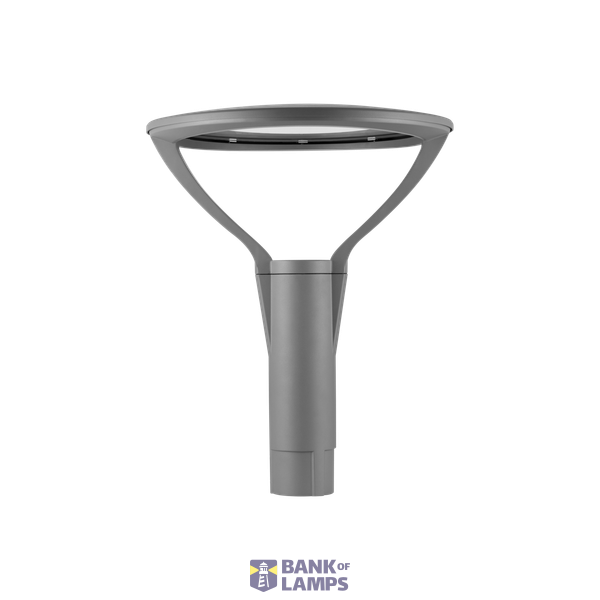

LEDPostTop-P 50W-DALI-740-W
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LEDPostTop-P 50W-DALI-740-W |
| Brand | Opple |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 4239 00 |
| ETIM | EC000062 |
| Width | 450 mm |
| Colour rendering index CRI | 70-79 |
| Length | 450 mm |
| Height/depth | 565 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 4000 K |
| Max. system power | 50 W |
| Rated luminous flux according to IEC 62722-2-1 | 6800 lm |
| Luminaire efficacy | 135 lm/W |
Packing details
| Packing level 1 | 6931783005071 |
Other Technical data
| Mounting method | Post top |
| Protection class | I |
| Lamp holder | None |
| Colour housing | Grey |
| Voltage type | AC/DC |
| Cable length | 0.5 m |
| Diameter | 450 mm |
| Housing material | Aluminium |
| Material cover | Glass matt/satinized |
| With connection cable | Yes |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| With control gear | Yes |
| Adjustable optics | No |
| Nominal current | 1200 mA |
| Remote control | None |
| With radio control | No |
| With light regulation program control | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM6 |
| Rated ambient temperature according to IEC62722-2-1 | -30-50 °C |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | Diffuser lens/optic/panel |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Exchangeable control gear | Yes |
| Power factor | 0.9 |
Downloads
Description
Professional post-top solution with optimal light performance. Integrates well into existing landscape. Different optics to suit the application and reduce glare. Die casted aluminium body for optimal heat dissipation. IP66 and suitable for use on coastal applications.
