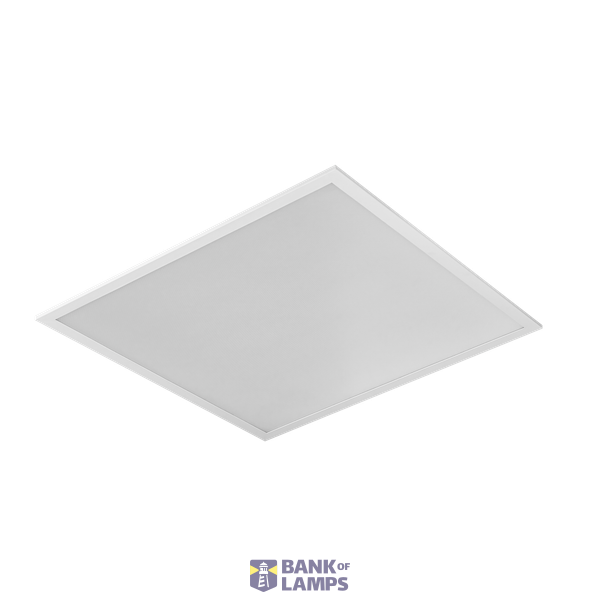

LEDPanelS-P6 Sq595-34W-BLE2-830-U19
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LEDPanelS-P6 Sq595-34W-BLE2-830-U19 |
| Brand | Opple |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC002892 |
| Width | 595 mm |
| Colour housing | White |
| Colour rendering index CRI | 80-89 |
| Length | 595 mm |
| Height/depth | 25 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK02 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP54 |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 3000 K |
| Max. system power | 34 W |
| Rated luminous flux according to IEC 62722-2-1 | 4420 lm |
| Luminaire efficacy | 130 lm/W |
Packing details
| Packing level 1 | 6941497774705 |
Other Technical data
| Protection class | II |
| Connection type | Free conductor end |
| Voltage type | AC/DC |
| With movement sensor | No |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| Built-in width | 595 mm |
| With light sensor | No |
| Suitable for suspended mounting | Yes |
| Housing material | Aluminium |
| Built-in length | 595 mm |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, structured |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | Yes |
| Nominal current | 900 mA |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG0 |
| Rated ambient temperature according to IEC62722-2-1 | -10-45 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | Yes |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | Diffuser lens/optic/panel |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 19 |
| Operation by Bluetooth | Yes |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Surface protection housing | Lacquered |
| Power factor | 0.9 |
Downloads
Description
High quality LED Slim Panel, suitable for offices (UGR19). Standard IP54 (front side). Recessed, suspended and surface mounting possible.
