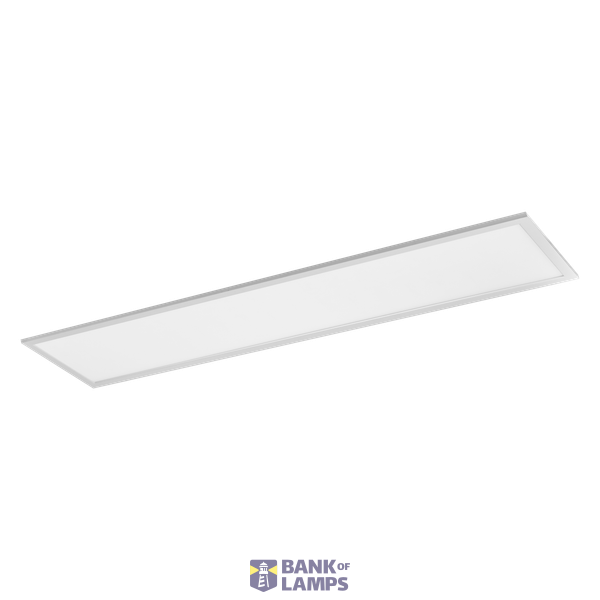

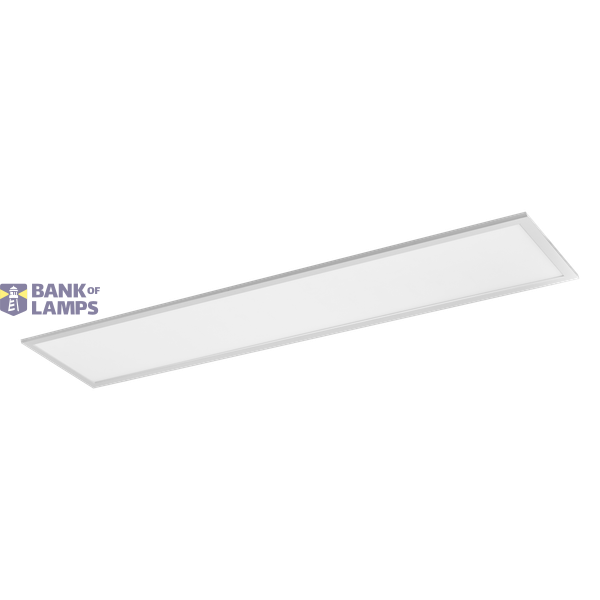

LEDPanelRc-S5 Re295-30W-BLE2-840-U19

Name: LEDPanelRc-S5 Re295-30W-BLE2-840-U19
Brand: Opple
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	LEDPanelRc-S5 Re295-30W-BLE2-840-U19
Brand	Opple
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	9405 1190 00
ETIM	EC002892
Width	296 mm
Colour housing	White
Colour rendering index CRI	80-89
Length	1196 mm
Height/depth	9 mm
Lamp type	LED not exchangeable
Impact strength	IK04
Nominal voltage	220-240 V
Degree of protection (IP)	IP54
Beam angle	Extreme wide beam >80°
Colour temperature	4000 K
Max. system power	30 W
Rated luminous flux according to IEC 62722-2-1	3900 lm
Luminaire efficacy	130 lm/W

Packing details

Packing level 1

6941497785268

Other Technical data

Protection class	II
Connection type	Free conductor end
Voltage type	AC/DC
With movement sensor	No
Type of grid	None
Type of control gear	LED operating device current-controlled
Built-in width	296 mm
With light sensor	No
Suitable for suspended mounting	Yes
Housing material	Aluminium
Built-in length	1196 mm
Suitable for light line configuration	No
Suitable for emergency lighting	No
Light outlet	Direct
Light sharing	Symmetric
Material cover	Plastic, structured
Emergency power supply integrated	No
With light source	Yes
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	No
Covering of the luminaire with thermally insulating material possible	No
Suitable for built-in mounting	Yes
With control gear	Yes
Suitable for workplace according to EN 12464-1	Yes
Suitable for surface mounting	Yes
Nominal current	750 mA
Colour of light	White
With air slots	No
Constant light output (CLO)	No
IFTTT support available	Yes
Type of wiring	Ending
Rated life time L70/B50 at 25 °C	100000 h
Colour consistency (McAdam ellipse)	SDCM3
Photobiological safety according to EN 62471	RG0
Rated ambient temperature according to IEC62722-2-1	-20-40 °C
Filament test according to IEC 60695-2-11	650 °C - 30 s
Dimming 0-10 V	No
Dimming 1-10 V	No
Dimming DALI	No
Dimming DMX	No
Dimming potentiometer (integrated)	No
Dimming LineSwitch	No
Dimming manufacturer's proprietary system	No
Dimming mains voltage modulation	No
Dimming phase cut-off	No
Dimming phase cut-on	No
Dimming programmable	No
Dimming RF	Yes
Dimming Sine Wave Reduction	No
Dimming Touch and Dim	No
Dimming Zigbee	No
Dimming with push-button	No
No dim function	No
Light distributor	Diffuser lens/optic/panel
Dimming DSI	No
Unified Glare Ratio (UGR)	19
Operation by Bluetooth	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
Max. number of luminaires per miniature circuit breaker C16	25
Max. number of luminaires per miniature circuit breaker B16	16
Dimming DALI-2	No
Colour temperature adjustable	No
Luminous flux adjustable	Positions
Beam angle adjustable	No
Exchangeable control gear	Yes
Suitable for ceiling mounting	Yes
Surface protection housing	Lacquered
Power factor	0.9

Downloads

Product data sheet Others Instructions for use Mounting instruction Sales brochure

Description

Premium side-lit LED Slim Panel, suitable for offices (UGR19). Ultra-slim panel (9mm), ideal for suspended use. Recessed, suspended and surface mounting possible.
