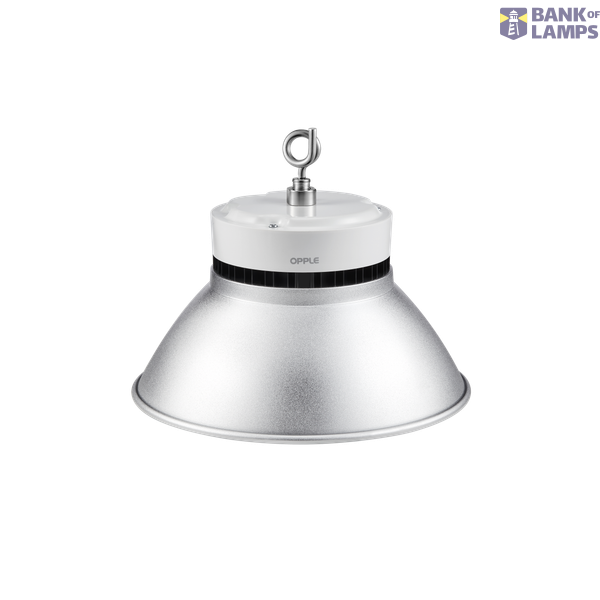

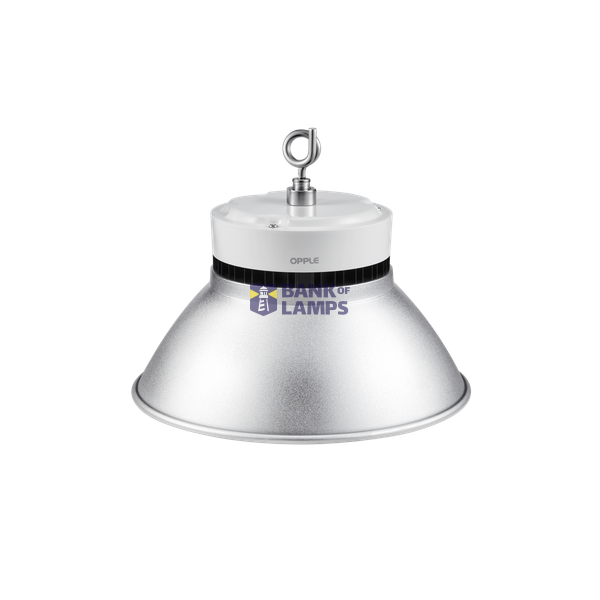

LEDLowbay-E 30W-4000-60D
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LEDLowbay-E 30W-4000-60D |
| Brand | Opple |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC001716 |
| Width | 230 mm |
| Colour rendering index CRI | 80-89 |
| Length | 230 mm |
| Height/depth | 187.5 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Wide beam 41-80° |
| Colour temperature | 4000 K |
| Max. system power | 30 W |
| Rated luminous flux according to IEC 62722-2-1 | 3000 lm |
| Luminaire efficacy | 100 lm/W |
Packing details
| Packing level 1 | 6956321806835 |
Other Technical data
| Mounting method | Pendant |
| Protection class | I |
| Outer diameter | 230 mm |
| Reflector | Matt |
| Lamp holder | None |
| Colour housing | Silver |
| Voltage type | AC |
| Type of control gear | LED operating device current-controlled |
| Ball-proof | No |
| Housing material | Aluminium |
| Suitable for emergency lighting | No |
| Light sharing | Symmetric |
| Material reflector | Aluminium |
| Emergency power supply integrated | No |
| With protective cover | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| With control gear | Yes |
| Nominal current | 150 mA |
| Colour of light | White |
| Constant light output (CLO) | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 60000 h |
| Colour consistency (McAdam ellipse) | SDCM6 |
| Rated ambient temperature according to IEC62722-2-1 | -20-45 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Reflector |
| Dimming DSI | No |
| Suitable for auxiliary lamp | No |
| Max. number of luminaires per miniature circuit breaker C16 | 29 |
| Max. number of luminaires per miniature circuit breaker B16 | 17 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Power factor | 0.9 |
Downloads
Description
Stylish solution for medium high ceilings in retail and industry.
