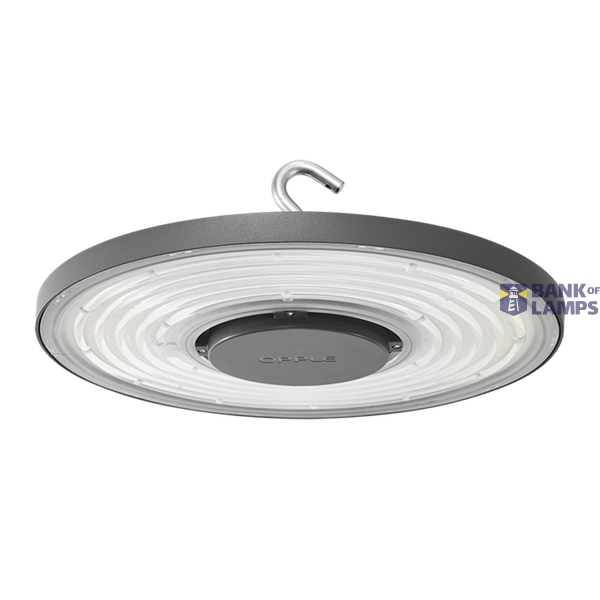

LEDHighbay-P6 70W-840-W
Order only
EAN: 6941491745145
MPN: 545001120300
Package: 1
No price options are available.
Technical Information
| Item condition | New |
| Manufacture name | LEDHighbay-P6 70W-840-W |
| Brand | Opple |
| Categories |
High Bay Luminaires
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC001716 |
| Width | 336 mm |
| Colour rendering index CRI | 80-89 |
| Length | 336 mm |
| Height/depth | 97 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 70 W |
| Rated luminous flux according to IEC 62722-2-1 | 14000 lm |
| Luminaire efficacy | 200 lm/W |
Packing details
| Packing level 1 | 6941491745145, 6941491745145 |
Other Technical data
| Mounting method | Pendant |
| Protection class | I |
| Outer diameter | 336 mm |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 1.5 mm² |
| Connection type | Screwed terminal |
| Colour housing | Grey |
| Voltage type | AC |
| Type of control gear | LED operating device current-controlled |
| Ball-proof | Yes |
| Housing material | Aluminium |
| Suitable for emergency lighting | No |
| Light sharing | Symmetric |
| Emergency power supply integrated | No |
| With protective cover | Yes |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| With control gear | Yes |
| Nominal current | 335 mA |
| Colour of light | White |
| Constant light output (CLO) | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Total harmonic distortion | 0.15 |
| Rated ambient temperature according to IEC62722-2-1 | -30-50 °C |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Focal lens |
| Dimming DSI | No |
| Suitable for auxiliary lamp | No |
| Energy efficiency class of the built-in lamp | Other |
| Energy efficiency class of the provided exchangeable built-in lamp | A |
| Highest energy efficiency class of the exchangeable lamp | A |
| Lowest energy efficiency class of the exchangeable lamp | A |
| Max. number of luminaires per miniature circuit breaker C16 | 17 |
| Max. number of luminaires per miniature circuit breaker B16 | 10 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Power factor | 0.95 |
Downloads
Description
High quality LED Highbay solution with improved ultra slim design. Equipped with breather to prevent condensation. Equipped with IP68 connector. Perfect for gymnasiums and sports facilities.
