LEDDownlightRc-P-MW R200-23W-BLE2-940

Name: LEDDownlightRc-P-MW R200-23W-BLE2-940
Brand: Opple
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	LEDDownlightRc-P-MW R200-23W-BLE2-940
Brand	Opple
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	9405 1190 00
ETIM	EC001744
Width	225 mm
Colour rendering index CRI	90-100
Length	225 mm
Height/depth	73 mm
Lamp type	LED not exchangeable
Impact strength	IK02
Nominal voltage	220-240 V
Degree of protection (IP)	IP44
Beam angle	Wide beam 41-80°
Colour temperature	4000 K
Max. system power	23 W
Rated luminous flux according to IEC 62722-2-1	2530 lm
Luminaire efficacy	110 lm/W

Packing details

Packing level 1

6931783010389

Other Technical data

Protection class	II
Outer diameter	225 mm
Reflector	Matt
Lamp holder	None
Colour housing	Black
Voltage type	AC
With movement sensor	No
Type of control gear	LED operating device current-controlled
Suitable for wall mounting	No
With light sensor	No
Suitable for suspended mounting	No
Light outlet	Direct
Light sharing	Symmetric
Emergency power supply integrated	No
With light source	Yes
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	No
Covering of the luminaire with thermally insulating material possible	No
Suitable for built-in mounting	Yes
With control gear	Yes
Suitable for surface mounting	Yes
Surface brushed	No
Nominal current	315
Colour of light	White
Adjustability	Not adjustable
Suitable for traverse mounting	No
Suitable for pedestal/floor mounting	No
Suitable for light-track mounting	No
Suitable for clamp-mounting	No
Constant light output (CLO)	No
IFTTT support available	No
Type of wiring	Ending
Rated life time L70/B50 at 25 °C	70000 h
Colour consistency (McAdam ellipse)	SDCM6
Photobiological safety according to EN 62471	RG1
Rated ambient temperature according to IEC62722-2-1	-10-40 °C
Filament test according to IEC 60695-2-11	650 °C - 30 s
Dimming 0-10 V	No
Dimming 1-10 V	No
Dimming DALI	No
Dimming DMX	No
Dimming potentiometer (integrated)	No
Dimming LineSwitch	No
Dimming manufacturer's proprietary system	No
Dimming mains voltage modulation	No
Dimming phase cut-off	No
Dimming phase cut-on	No
Dimming programmable	No
Dimming RF	Yes
Dimming Sine Wave Reduction	No
Dimming Touch and Dim	No
Dimming Zigbee	No
Dimming with push-button	No
No dim function	No
Light distributor	Reflector
Suitable for low voltage cable system	No
Dimming DSI	No
Unified Glare Ratio (UGR)	22
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
Max. number of luminaires per miniature circuit breaker C16	43
Max. number of luminaires per miniature circuit breaker B16	26
Dimming DALI-2	No
Colour temperature adjustable	No
Luminous flux adjustable	No
Beam angle adjustable	No
Exchangeable control gear	Yes
Built-in diameter	200 mm
Suitable for ceiling mounting	No
Power factor	0.9

Downloads

Product data sheet Others Instructions for use Mounting instruction Sales brochure

Description

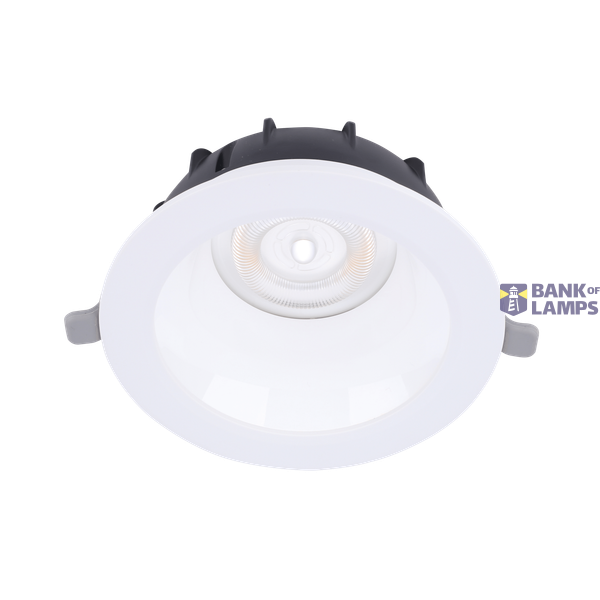

Advanced high quality LED downlight. Unique optical lens concept with matte white (MW) reflector and low glare. Low luminaire height (max 73mm). Direct replacement for compact fluorescent downlights. IP44 on light emitting side. Provided with protective foil in order to protect the optics against dust and dirt during the installation.
