LEDBollard-Luke-E L1000-8W-840-BL

Name: LEDBollard-Luke-E L1000-8W-840-BL
Brand: Opple
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	LEDBollard-Luke-E L1000-8W-840-BL
Brand	Opple
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	9405 4239 00
ETIM	EC000301
Width	140 mm
Colour rendering index CRI	80-89
Length	208 mm
Height/depth	1000 mm
Lamp type	LED not exchangeable
Impact strength	IK10
Nominal voltage	220-240 V
Degree of protection (IP)	IP65
Beam angle	Extreme wide beam >80°
Colour temperature	4000 K
Max. system power	8 W
Rated luminous flux according to IEC 62722-2-1	650 lm
Luminaire efficacy	80 lm/W

Packing details

Packing level 1

6931783002988

Other Technical data

Protection class	I
Lamp holder	None
With base plate	Yes
Colour housing	Black
Voltage type	AC/DC
With movement sensor	No
Type of control gear	LED operating device current-controlled
With light sensor	No
Housing material	Aluminium
Type of luminaire	Bollard luminaire
Light sharing	Symmetric
With light source	Yes
With control gear	Yes
Nominal current	110
Colour of light	White
Constant light output (CLO)	No
IFTTT support available	No
Type of wiring	Ending
Rated life time L70/B50 at 25 °C	50000 h
Light distributor	Diffuser lens/optic/panel
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
Max. number of luminaires per miniature circuit breaker C16	160
Max. number of luminaires per miniature circuit breaker B16	213
Colour temperature adjustable	No
Luminous flux adjustable	No
Beam angle adjustable	No
Exchangeable control gear	No
Power factor	0.9

Downloads

3D / BIM object Product data sheet Others Instructions for use Sales brochure

Description

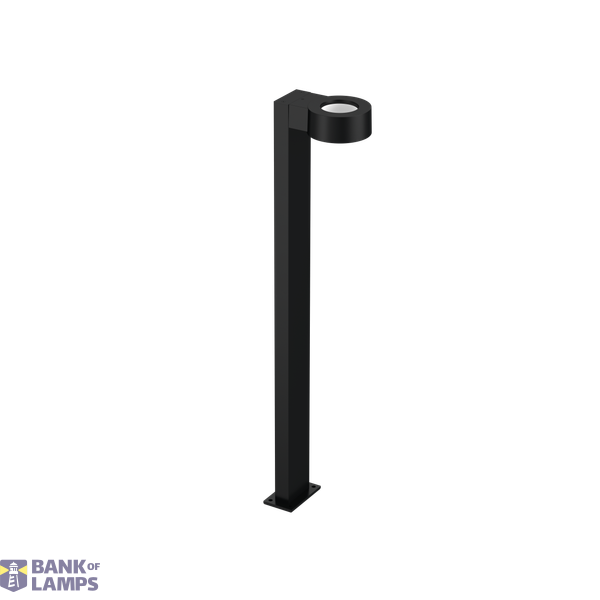

Architectural urban landscape luminaire for outdoor applications. Modern LED module design, with downward facing luminous circle. IP65 and IK10, suitable for use on coastal applications. Top-cover accessory standard included. IP68 Waterproof connector included for easy wiring.
