LED VALUE CEILING 10 W 3000 K
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED VALUE CEILING 10 W 3000 K |
| Brand | OSRAM |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC002892 |
| Colour housing | White |
| Colour rendering index CRI | 80-89 |
| Height/depth | 85 mm |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 3000 K |
| Max. system power | 10 W |
| Rated luminous flux according to IEC 62722-2-1 | 700 lm |
| Luminaire efficacy | 70 lm/W |
Packing details
| Packing level 1 | 4058075802421 |
| Packing level 2 | 4058075802438 |
Other Technical data
| Protection class | II |

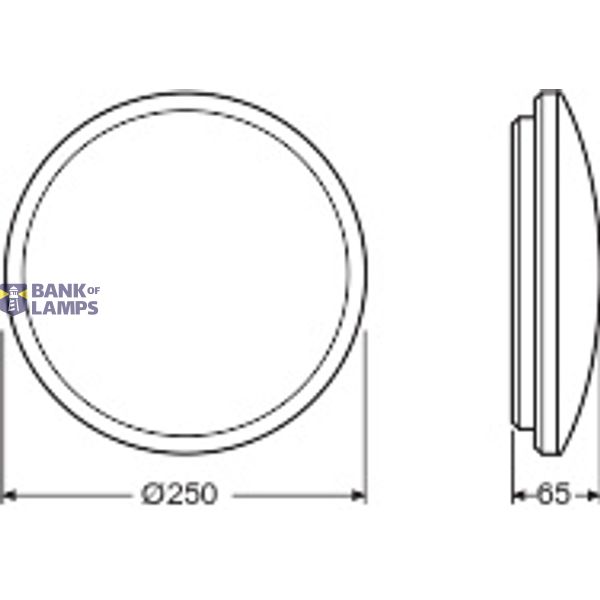

| Outer diameter | 250 mm |
| Connection type | Push-in clamp |
| Voltage type | AC |
| With movement sensor | No |
| Type of grid | Matt |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Material cover | Plastic, opal |
| Emergency power supply integrated | No |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for wall mounting | Yes |
| Suitable for built-in mounting | No |
| With control gear | No |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Rated life time L70/B50 at 25 °C | 15000 h |
| Colour consistency (McAdam ellipse) | SDCM6 |
| Photobiological safety according to EN 62471 | RG0 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming depending on control gear | No |
| Dimming DSI | No |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | Yes |
Downloads
Description
Wall and ceiling luminaires. Product features: Beam angle: 120°. Color rendering index Ra: ≥ 80. Available with color temperature: 3,000 K, 4,000 K, 6,500 K. Product benefits: Direct connection to AC power supply thanks to integrated control gear. Long lifetime thanks to LED technology. Mercury-free technology. Uniform room illumination. Areas of application: Corridors. Entrances / Hallways.
