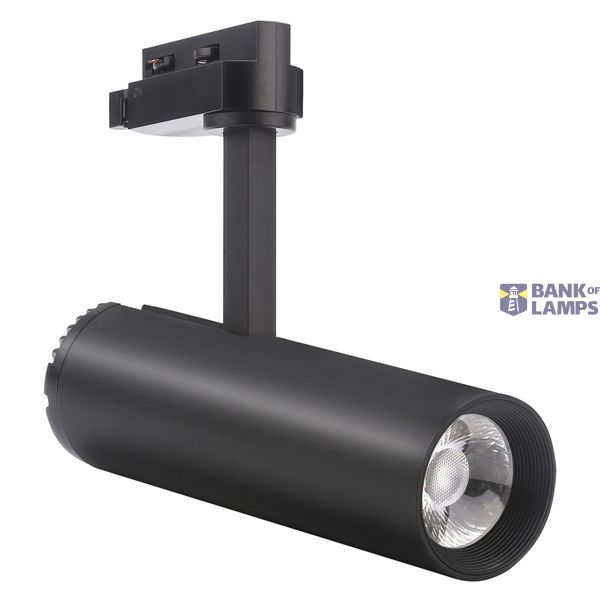

LED TRACK SPOT LIGHT 15 W 24 ° 4000 K Black
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED TRACK SPOT LIGHT 15 W 24 ° 4000 K Black |
| Brand | LEDVANCE |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC001744 |

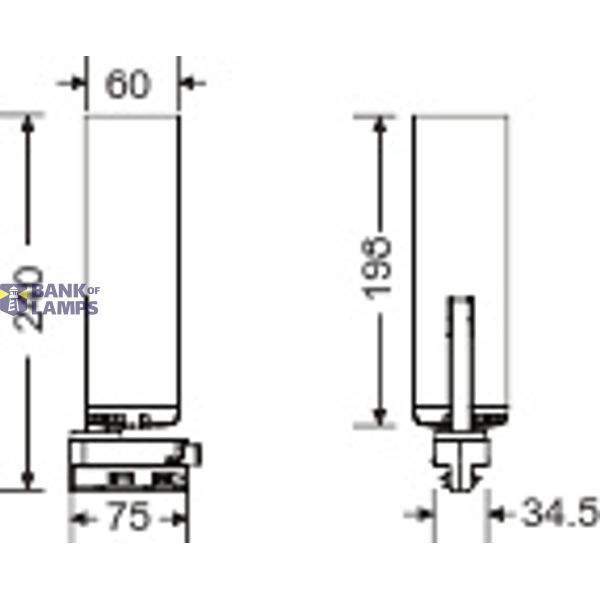

| Width | 60 mm |
| Colour rendering index CRI | 90-100 |
| Length | 75 mm |
| Height/depth | 240 mm |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 4000 K |
| Max. system power | 15 W |
| Rated luminous flux according to IEC 62722-2-1 | 1075 lm |
| Luminaire efficacy | 74 lm/W |
Packing details
| Packing level 1 | 4058075328099 |
| Packing level 2 | 4058075328105 |
Other Technical data
| Protection class | II |
| Colour housing | Black |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for wall mounting | No |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Material cover | Plastic, transparent |
| Emergency power supply integrated | No |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for built-in mounting | No |
| With control gear | No |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Surface brushed | No |
| Colour of light | White |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | Yes |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 1075 lm |
| Rated life time L70/B50 at 25 °C | 30000 h |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Rated ambient temperature according to IEC62722-2-1 | -20-40 °C |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming depending on control gear | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | Yes |
| Power factor | 0.9 |
Downloads
Description
LED spotlight luminaires. Product features: Color: black or white. Available with color temperature: 3,000 K, 4,000 K. Color rendering index Ra: > 90. Power factor: > 0.9. Initial color consistency: < 5 SDCM. Lifetime (L70/B50): up to 30,000 h. Type of protection: IP20. CCC marked, CB test certificate. Follows the unified LEDVANCE design language (SCALE design). Product benefits: High power COB LED provides high lumen output in compact housing. Low flicker light thanks to special electronic control gear. Good color rendering for the best product presentation. Areas of application: Shops, supermarkets. Retail outlets. Shopping malls. Hotels, restaurants.
