Technical Information
| Item condition |
New |
| Manufacture name |
LED TL Luminaire with strip - 1x4W 30cm 400lm 4000K IP20 |
| Brand |
Shada
|
| Categories |
Batten luminaires
|
| Country of origin* |
CN |
|
* The actual country of origin may differ depending on the delivery batch.
To confirm the specific country of origin, please contact your account manager.
|
| Harmonized System Code |
9405 1140 90
|
| ETIM |
EC000109
|
| Width |
36 mm |
| Colour rendering index CRI |
80-89 |
| Length |
313 mm |
| Height/depth |
36 mm |
| Lamp type |
LED not exchangeable |
| Nominal voltage |
220-240 V |
| Degree of protection (IP) |
IP20 |
| Colour temperature |
4000 K |
| Max. system power |
4 W |
Packing details
| Packing level 1 |
8719323786868 |
| Packing level 2 |
8721264945433 |
| Packing level 3 |
8719323786868 |
Other Technical data
| Protection class |
II |
| Connection type |
Other |
| Colour housing |
White |
| Voltage type |
AC |
| Type of control gear |
Electronic ballast |
| With light source |
No |
| Nominal current |
40 |
| Colour of light |
White |
| Rated life time L70/B50 at 25 °C |
30000 h |
| Dimming 0-10 V |
No |
| Dimming 1-10 V |
No |
| Dimming DALI |
No |
| Dimming DMX |
No |
| Dimming potentiometer (integrated) |
No |
| Dimming GPRS |
No |
| Dimming LineSwitch |
No |
| Dimming manufacturer's proprietary system |
No |
| Dimming mains voltage modulation |
No |
| Dimming phase cut-off |
No |
| Dimming phase cut-on |
No |
| Dimming programmable |
No |
| Dimming RF |
No |
| Dimming Sine Wave Reduction |
No |
| Dimming Touch and Dim |
No |
| Dimming Zigbee |
No |
| Dimming with push-button |
No |
| No dim function |
Yes |
| Energy efficiency class of the built-in lamp |
A++, A+, A (LED) |
| Energy efficiency class of the provided exchangeable built-in lamp |
E |
| Highest energy efficiency class of the exchangeable lamp |
E |
| Lowest energy efficiency class of the exchangeable lamp |
E |
| Power factor |
0.5 |
Description

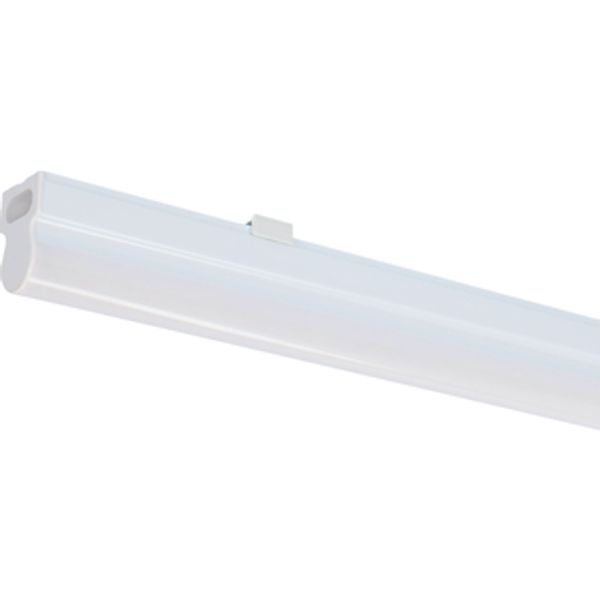

The Led Linear provides the optimal lighting for all worktops and is easy to install. Furthermore, the lamp is very environmentally friendly, because of its low energy consumption and long lifespan. The lamp offers a light output of 100 lumen per watt and a colour temperature of 4000K.
Moreover, the Led Linear lamps are easy to connect to one another, which enables a length of 60 and 120 cm.
The Led Linear package includes a switch, a plug, and a cable, which enables you to connect multiple lamps to each other.
Available in 30 cm (art. 2400250) and 90 cm (art. 2400252).
