LED SUPERSTAR DOWNLIGHT TRI-COLOUR SWITCH 8 W 3000 K/4000 K/5000 K KIT
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED SUPERSTAR DOWNLIGHT TRI-COLOUR SWITCH 8 W 3000 K/4000 K/5000 K KIT |
| Brand | OSRAM |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 4231 00 |
| ETIM | EC001744 |
| Width | 115 mm |
| Colour rendering index CRI | 80-89 |
| Height/depth | 60 mm |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP44 |
| Colour temperature | 3000 K |
| Max. system power | 8 W |
| Rated luminous flux according to IEC 62722-2-1 | 750 lm |
| Luminaire efficacy | 94 lm/W |
Packing details
| Packing level 1 | 4058075090941 |
| Packing level 2 | 4058075090958 |
Other Technical data
| Protection class | II |
| Outer diameter | 115 mm |
| Colour housing | White |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for wall mounting | No |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Emergency power supply integrated | No |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for built-in mounting | Yes |
| With control gear | No |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Surface brushed | No |
| Colour of light | White |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 750 lm |
| Rated ambient temperature according to IEC62722-2-1 | -20-40 °C |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming depending on control gear | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Exchangeable control gear | No |

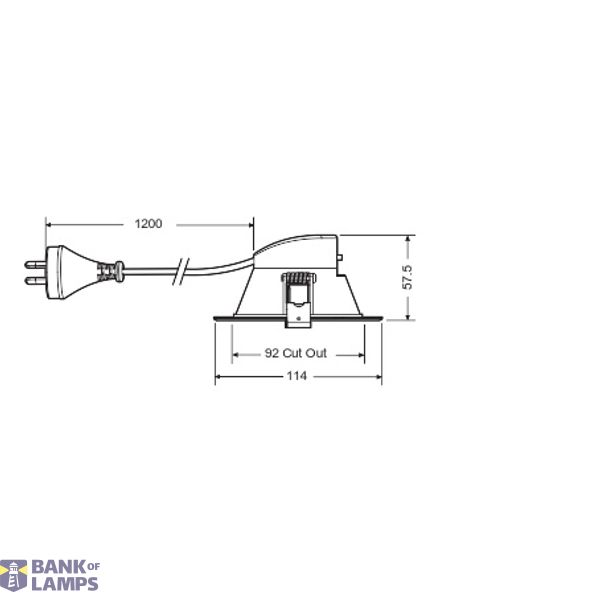

| Built-in diameter | 92 mm |
| Suitable for ceiling mounting | No |
Downloads
Description
LED downlight with three settable color temperatures. Product features: Three light colors selectable via slide switch. Luminous efficacy: up to 106 lm/W. Beam angle: 90°. Dimmable (with many common dimmers, see also www.ledvance.com.au). Type of protection, front side: IP44. Product benefits: Easy connection thanks to Plug and Play technology. Areas of application: Bathrooms (IP44). Residential interiors. Commercial lighting.
