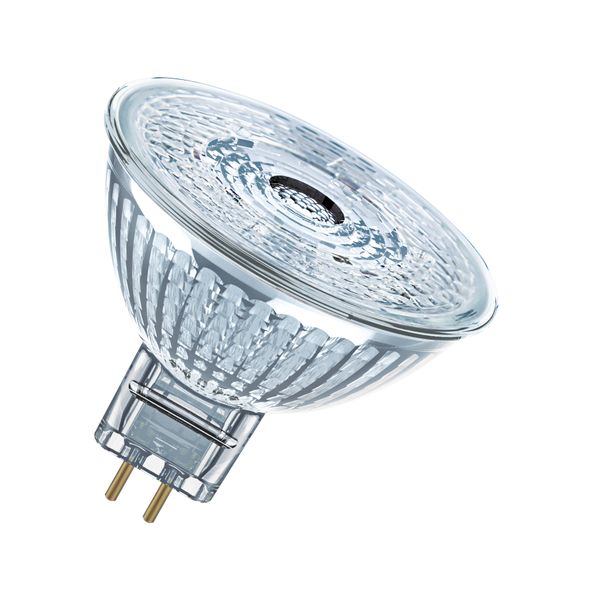

LED STAR MR16 12 V 35 36 ° 3.8 W/2700 K GU5.3

Name: LED STAR MR16 12 V 35 36 ° 3.8 W/2700 K GU5.3
Brand: OSRAM
Availability: Discontinued

Order only Discontinued Not Available

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	LED STAR MR16 12 V 35 36 ° 3.8 W/2700 K GU5.3
Brand	OSRAM
Country of origin	DE
Harmonized System Code	8539 5200 00
Energy Class	F
EPREL - European Product Registry for Energy Labelling	523013
Socket	GU5.3
Dimmable	No
Colour rendering index CRI	80-89
Diameter	51 mm
Lamp efficacy	92 lm/W
Lamp shape	Reflector
Length	46 mm
Nominal voltage	12 V
Type of cover	Clear
Colour temperature	2700 K
Lamp power	3.8 W
Luminous flux	350 lm
Filament lamp	No
Beam angle	36 °

Packing details

Packing level 1	4058075260276
Packing level 2	4058075616974
Packing level 3	4058075260276

Other Technical data

Colour	White
Voltage type	AC/DC
With remote control	No
Luminous intensity	790 cd
Remote operation possible	No
Degree of protection (IP)	IP20
Colour of light according to EN 12464-1	Warm white <3300 K
Average nominal lifespan	15000 h
Nominal current	490 mA
Weighted energy consumption in 1000 hours	5 kWh
IFTTT support available	No
Colour consistency (McAdam ellipse)	SDCM6
Photobiological safety according to EN 62471	RG1
Lamp designation	MR16
Min. number of switching cycles	100000
Rated luminous flux according to IEC 62612	350 lm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
Energy efficiency class according to EU regulation 2019/2015	F
Power factor	0.5
Energy Efficiency Index (EEI)	0.13

Downloads

Product data sheet Others

Description

Low-voltage LED reflector lamps MR16 with retrofit pin base. Product features: LED alternative to low voltage halogen lamps. Mercury-free lamps. Product benefits: Low energy consumption. Easy replacement of halogen lamps due to compact full glass design and single optic. Instant 100 % light, no warm-up time. Ideal for economical spotlighting. Areas of application: Shops. Hospitality. Museums, art galleries. Residential interiors. As a downlight for marking walkways, doors, stairs, etc.. Spotlighting for accents. Display cabinets and shop windows. Spotlighting heat-sensitive objects such as food, plants, etc.. Outdoor use in suitable outdoor luminaires only.
