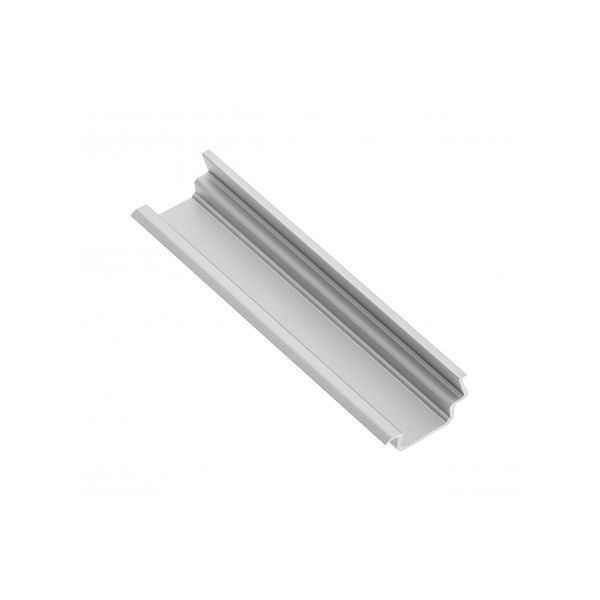

Profile GLAX for LED strip, corner recessed, 2 m

Order only

Price (excl. VAT):

3,12 €

This price is valid until 31.12.25

EAN: 5901867161109

MPN: PA-GLAXWPKT-AL

Package: 1

Box: 20

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Profile GLAX for LED strip, corner recessed, 2 m
Brand	GTV Lighting
Categories	Accessories/spare parts for light ribbon-/hose/-strip

Packing details

Packing level 1	5901867161109
Packing level 2	5901867161796
Packing level 3	5901867161802
Packing level 4	2012801088840

Downloads

Product data sheet

Description

The current trend is to move away from light points in favor of linear lighting, based on LED strips.

During operation, the belt generates heat that must be dissipated from it. Otherwise, the tape may wear out prematurely. Special aluminium GLAX profiles are used to dissipate heat from the belt. In order to effectively dissipate heat from the tape to the aluminum profile, the tape must adhere to it with its entire surface. Therefore, before pasting the LED strip into the GLAX profile, it is necessary to degrease its center.

Recessed profiles are used wherever we want to obtain a smooth surface, so that the profile does not collide, for example, with a drawer or drawer front. The recessed angular profile can be used, for example, to illuminate the kitchen worktop or illuminate the interior of deep cabinets or wardrobes.

For proper assembly, milling with a width of 18 mm and a depth of 10 mm should be performed. For this profile, the beam angle is 22В°.

Do not use mounting adhesives or silicones for installation.

Effectively dissipates the heat generated by the LED strip;
Possibility of using transparent casing PA-OSTRGLAX-00 or milk casing PA-OSMLGLAX-00;
The beam angle is 22В°;
The maximum width of the LED strip is 10 mm.
