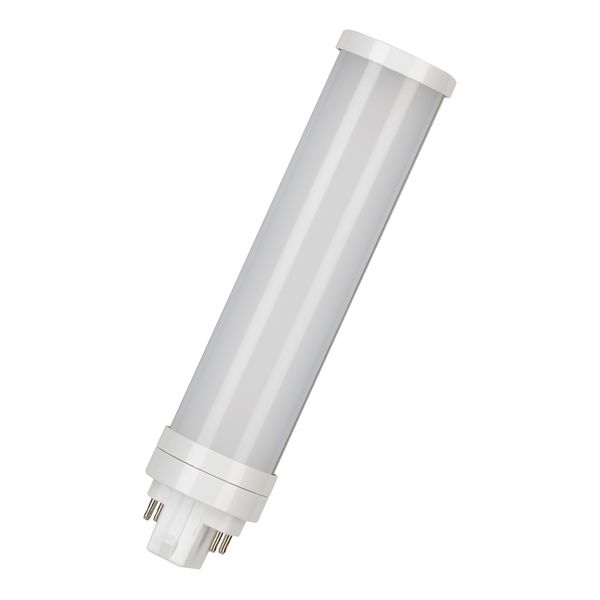

LED PL G24q TC-DEL 10W 840 FR 4P AC image 1

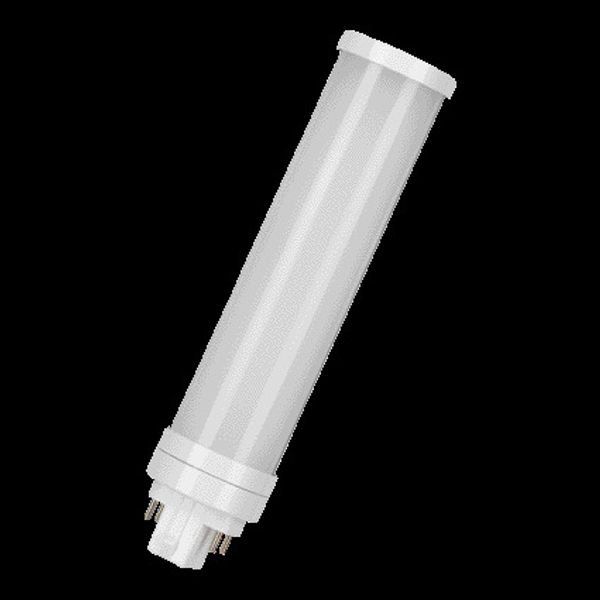

LED PL G24q TC-DEL 10W 840 FR 4P AC image 2

LED PL G24q TC-DEL 10W 840 FR 4P AC

Order only

Price (excl. VAT):

18,37 €

This price is valid until 24.12.25

EAN: 8714681431627

MPN: 143162

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	LED PL G24q TC-DEL 10W 840 FR 4P AC
Brand	Bailey
Categories	LED Compact Fluorescent bulbs Light Bulbs
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Socket	G24q
Dimmable	No
Colour rendering index CRI	80-89
Diameter	36 mm
Lamp efficacy	100 lm/W
Lamp shape	Tube, single-ended
Length	164 mm
Nominal voltage	220-240 V
Type of cover	Frosted
Colour temperature	4000 K
Lamp power	10 W
Luminous flux	1000 lm
Lamp designation	Other
Filament lamp	No

Packing details

Packing level 1

8714681431627

Other Technical data

Colour	White
Colour housing	White
Voltage type	AC
With remote control	No
Energy efficiency class	F
Luminous intensity	0 cd
Remote operation possible	No
Degree of protection (IP)	IP20
Colour of light according to EN 12464-1	Neutral white 3300-5300 K
Average nominal lifespan	20000 h
Nominal current	55 mA
Weighted energy consumption in 1000 hours	10 kWh
Colour consistency (McAdam ellipse)	SDCM5
Total harmonic distortion	0
Photobiological safety according to EN 62471	RG1
Min. number of switching cycles	15000
Power factor	0.7
Energy Efficiency Index (EEI)	0.13

Description

The LED PL G24q AC (4-pin) TC-DEL lamps with rotating base are LED replacements for the commonly used compact fluorescent lamps. PL stands for PubLic as these lamps are mainly used in wall and ceiling luminaires in public areas, offices, shops and restaurants. Installation: for mains operation, disconnect electronic ballast. Only suitable for temperatures up to 40°C in the fixture.
