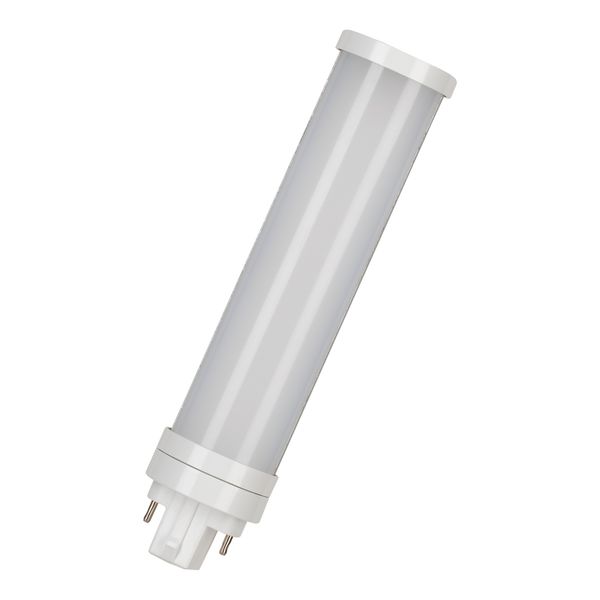

LED PL G24d TC-D 10W 830 FR 2P EM+AC
Order only
Price (excl. VAT):
18,37 €
EAN: 8714681431559
MPN: 143155
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | LED PL G24d TC-D 10W 830 FR 2P EM+AC |
| Brand | Bailey |
| Categories |
LED Compact Fluorescent bulbs
G24d Light Bulbs |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Socket | G24d |
| Dimmable | No |
| Colour rendering index CRI | 80-89 |
| Diameter | 36 mm |
| Lamp efficacy | 97 lm/W |
| Lamp shape | Tube, single-ended |
| Length | 164 mm |
| Nominal voltage | 220-240 V |
| Type of cover | Frosted |
| Colour temperature | 3000 K |
| Lamp power | 10 W |
| Luminous flux | 970 lm |
| Lamp designation | Other |
| Filament lamp | No |
Packing details
| Packing level 1 | 8714681431559 |
Other Technical data
| Colour | White |
| Colour housing | White |
| Voltage type | AC |
| With remote control | No |
| Energy efficiency class | F |
| Luminous intensity | 0 cd |
| Remote operation possible | No |
| Degree of protection (IP) | IP20 |
| Colour of light according to EN 12464-1 | Warm white <3300 K |
| Average nominal lifespan | 20000 h |
| Nominal current | 55 mA |
| Weighted energy consumption in 1000 hours | 10 kWh |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Total harmonic distortion | 0 |
| Photobiological safety according to EN 62471 | RG1 |
| Min. number of switching cycles | 15000 |
| Power factor | 0.7 |
| Energy Efficiency Index (EEI) | 0.13 |
Description
The LED PL G24d AC + EM (2-pin) TC-D lamps with rotating base are LED replacements for the commonly used compact fluorescent lamps. PL stands for PubLic as these lamps are mainly used in wall and ceiling luminaires in public areas, offices, shops and restaurants. Fast and simple 1-to-1 replacement in luminaires with conventional ballast or mains voltage. Installation: Disconnecting magnetic ballast is optional, not necessary. Only suitable for temperatures up to 40°C in the fixture.
