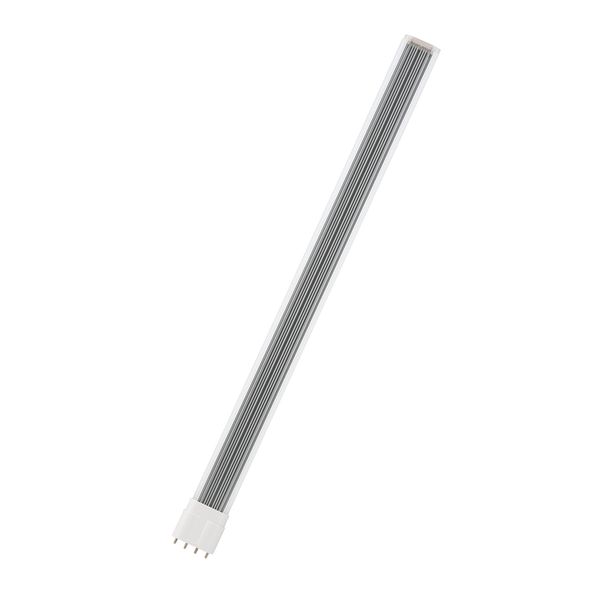

LED PL 2G11 TC-L 24W 830 FR

Order only

Price (excl. VAT):

32,55 €

This price is valid until 24.12.25

EAN: 8714681384763

MPN: 80100038476

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	LED PL 2G11 TC-L 24W 830 FR
Brand	Bailey
Categories	LED Compact Fluorescent bulbs 2G11 Light Bulbs
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Socket	2G11
Dimmable	No
Colour rendering index CRI	80-89
Diameter	39 mm
Lamp efficacy	104 lm/W
Lamp shape	Tube, single-ended
Length	542 mm
Nominal voltage	220-240 V
Type of cover	Frosted
Colour temperature	3000 K
Lamp power	24 W
Luminous flux	2500 lm
Lamp designation	Other
Filament lamp	No

Packing details

Packing level 1

8714681384763

Other Technical data

Colour	White
Colour housing	White
Voltage type	AC
With remote control	No
Energy efficiency class	F
Luminous intensity	0 cd
Remote operation possible	No
Degree of protection (IP)	IP20
Colour of light according to EN 12464-1	Warm white <3300 K
Average nominal lifespan	20000 h
Nominal current	150 mA
Weighted energy consumption in 1000 hours	24 kWh
Colour consistency (McAdam ellipse)	SDCM5
Total harmonic distortion	0
Photobiological safety according to EN 62471	Other
Min. number of switching cycles	15000
Power factor	0.7
Energy Efficiency Index (EEI)	0.16

Description

The LED PL 2G11 (4-pin) TC-L lamps are replacements for the commonly used compact fluorescent lamps without integrated ballast. PL stands for PubLic as these lamps are mainly used in public areas (indoor and outdoor) and as general lighting in shops, offices and hotels. Installation: Conventional ballast: Always remove the starter. Decoupling magnetic ballast is optional, not necessary. Electronic Ballast: Disconnect ballast before use. Ambient temperature range: -20°C to +40°C.
