LED PERFORMANCE HIGHBAY 120 W 4000 K GEN2
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED PERFORMANCE HIGHBAY 120 W 4000 K GEN2 |
| Brand | LEDVANCE |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 1140 00 |
| ETIM | EC001716 |
| Colour rendering index CRI | 80-89 |

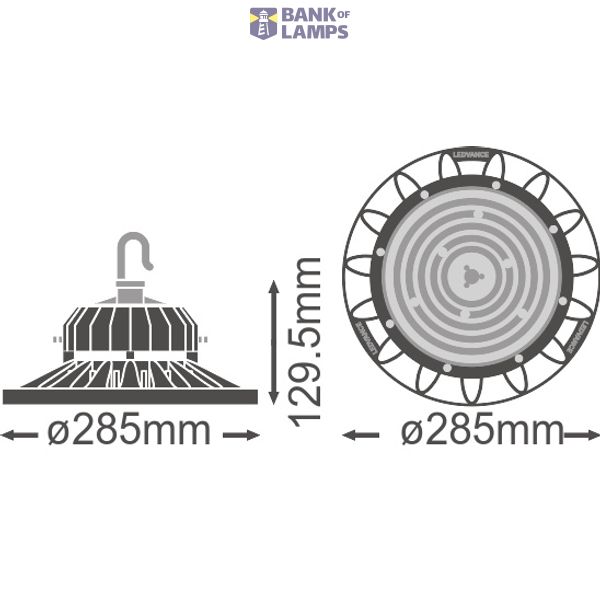

| Height/depth | 129.5 mm |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Colour temperature | 4000 K |
| Max. system power | 120 W |
| Rated luminous flux according to IEC 62722-2-1 | 16200 lm |
| Luminaire efficacy | 135 lm/W |
Packing details
| Packing level 1 | 4058075261914 |
Other Technical data
| Protection class | I |
| Outer diameter | 285 mm |
| Connection type | Other |
| Colour housing | Black |
| Voltage type | AC |
| Ball-proof | No |
| Housing material | Aluminium |
| Suitable for emergency lighting | No |
| Emergency power supply integrated | No |
| With protective cover | No |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| With control gear | No |
| Colour of light | White |
| Constant light output (CLO) | No |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Rated ambient temperature according to IEC62722-2-1 | -30-50 °C |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming DSI | No |
| Suitable for auxiliary lamp | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Exchangeable control gear | No |
Downloads
Description

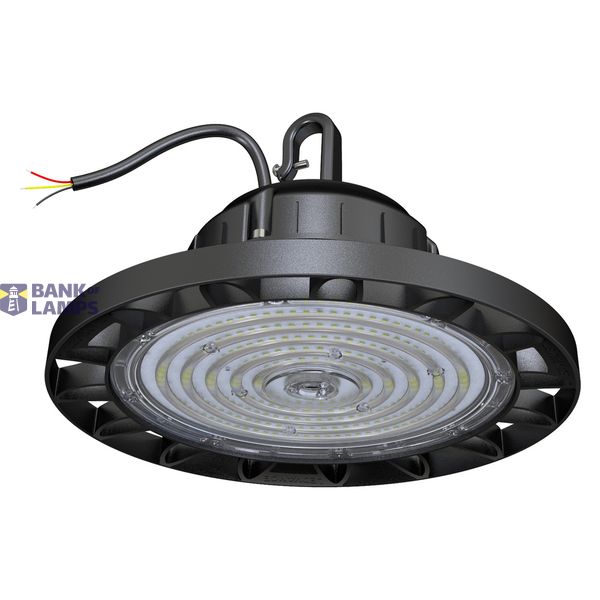

LED high-bay luminaires. Product features: Luminous efficacy: up to 140 lm/W. 1…10 V dimming control. Available with color temperature: 4,000 K, 6,500 K. Color rendering index Ra: > 80. UV-stabilized polycarbonate (PC) housing, PC-diffuser. Type of protection, plug: IP65. Black powder-coated, robust die-cast aluminum housing. Pre-wired with mains cable. Lifetime: up to 50,000 h. Certificate: CB. Product benefits: Unique heat sink design with air channels to increase system reliability. Low maintenance and operation costs due to long lifetime of LED. Single piece lens, color stable and shape-retaining even at high temperatures. High efficiency and reliability. Areas of application: Industrial and storage facilities. Production and assembly facilities. Warehouses. Loading docks. Train stations. Aircraft hangers. Shopping malls. Supermarkets. Equipment / Accessories: Clips for optional surface mounting available.
