LED PERFORMANCE HIGHBAY 1-10V 200 W/6500 K
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED PERFORMANCE HIGHBAY 1-10V 200 W/6500 K |
| Brand | LEDVANCE |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC001716 |
| Height/depth | 120.8 mm |
| Impact strength | IK08 |
| Nominal voltage | 100-277 V |
| Degree of protection (IP) | IP65 |
| Colour temperature | 6500 K |
| Max. system power | 200 W |
| Rated luminous flux according to IEC 62722-2-1 | 28000 lm |
| Luminaire efficacy | 140 lm/W |
Packing details
| Packing level 1 | 4058075420656 |
Other Technical data
| Protection class | I |
| Outer diameter | 321 mm |
| Reflector | None |
| Connection type | Other |
| Colour housing | Black |
| Voltage type | AC |
| Ball-proof | No |
| Housing material | Aluminium |
| Suitable for emergency lighting | No |
| Material reflector | Without reflector |
| Emergency power supply integrated | No |
| With protective cover | No |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| With control gear | No |
| Constant light output (CLO) | No |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Rated ambient temperature according to IEC62722-2-1 | -30-50 °C |
| Dimming 0-10 V | No |
| Dimming 1-10 V | Yes |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Suitable for auxiliary lamp | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Exchangeable control gear | No |
Downloads
Description

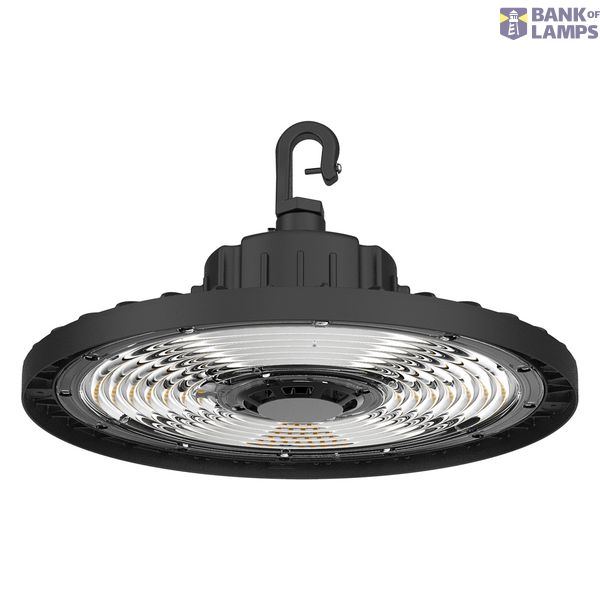

High-bay luminaires. Product features: Die-casting aluminum offer a heavy-duty housing and high efficacy heat-dissipation. High system efficiency up to 140 lm/W. Available with wattage: 90 W, 120 W, 150 W, 200 W. Available with color temperature: 4,000 K, 6,500 K. Color rendering index Ra: > 80. Power factor: > 0.9. 1-10V dimming driver. Type of protection: IP65. Impact resistance: IK08. Certificate: CB. Product benefits: Pre-wired with 500 mm flying cable. Low maintenance costs thanks to long lifetime. Areas of application: Industrial and commercial halls. Warehouses. Public areas (stations, stadiums). Airports.
