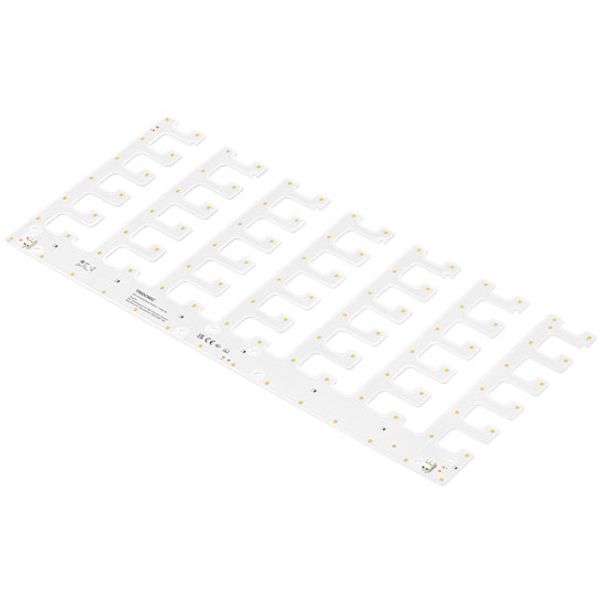

LED modules

Name: LED modules
Brand: Tridonic
Price: 17.920 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

17,92 €

This price is valid until next price list or while stock lasts

EAN: 9006210821658

MPN: 28004934

Package: 1

Estimate delivery time to our warehouse: 2-4 weeks

Technical Information

Item condition	New
Manufacture name	LED modules
Brand	Tridonic
Categories	LED modules
Width	246 mm
Length	520 mm
Degree of protection (IP)	IP00
Lamp voltage	33.2-41.4 V
Colour temperature	3000 K
Lamp power	13.7 W
Luminous flux	2030-2220 lm

Packing details

Packing level 1

9006210821658, 9006210821658

Other Technical data

Operating voltage	0 V
Colour of light according to EN 12464-1	Warm white <3300 K
Operating current	300-525 mA
External driver required	No

Description

Ideal for linear and panel lights ¦ Perfectly uniform light, even if several LED modules are used together in a line ¦ Self-cooling (no additional heat sink required) ¦ Push terminals for quick and simple wiring of LED module to LED module ¦ Min. order quantity: 2 pcs. (one package contains 2 modules) ¦ Long lifetime: 60,000 hours ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Colour temperatures 3,000, 4,000, 5,000 and 6,500 K ¦ Useful luminous flux 2,490 lm at Irated and tp = 25 °C ¦ Efficacy of the LED module 181 lm/W at Irated and tp = 25 °C ¦ High colour rendering index CRI > 80 ¦ Small colour tolerance (MacAdam 3) ¦ Small luminous flux tolerances ¦ Module dimension 520 x 246 mm ¦ Simple installation (e.g. screws) ¦ Combine Tridonic's LED modules and dimmable drivers to achieve an outstanding system efficacy (configuration possible via https://setbuilder.tridonic.com/)
