LED modules

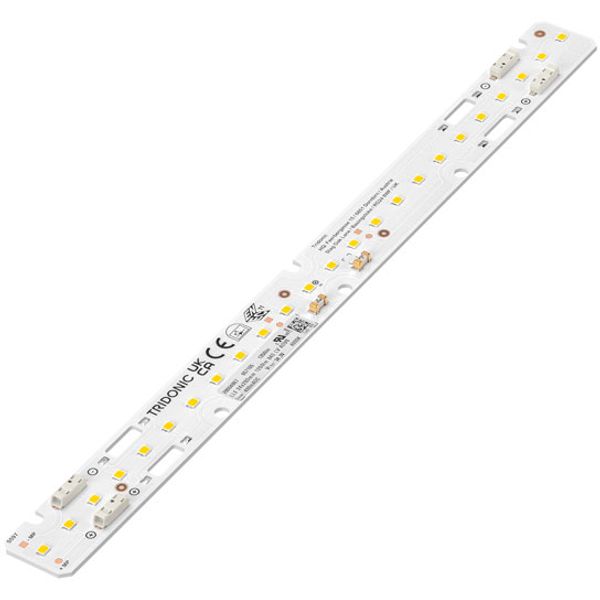

Name: LED modules
Brand: Tridonic
Price: 5.020 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

5,02 €

This price is valid until next price list or while stock lasts

EAN: 9006210818788

MPN: 28004869

Package: 1

Estimate delivery time to our warehouse: 2-4 weeks

Technical Information

Item condition	New
Manufacture name	LED modules
Brand	Tridonic
Categories	LED modules
Width	24 mm
Length	280 mm
Degree of protection (IP)	IP00
Lamp voltage	31.8-35.3 V
Colour temperature	6500 K
Luminous flux	651-1323 lm

Packing details

Packing level 1

9006210818788, 9006210818788, 9006210818788

Other Technical data

Operating voltage	0 V
Colour of light according to EN 12464-1	Daylight white >5300 K
Operating current	100-350 mA
External driver required	No

Description

Ideal for linear and panel lights ¦ 4 terminals for parallel wiring ¦ Perfectly uniform light, even if several LED modules are used together in a line ¦ Push terminals for quick and simple wiring of LED module to LED module ¦ Option backside terminal ¦ Broad portfolio from extruded lenses and covers available ¦ HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output ¦ Long lifetime up to 72,000 hours ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Colour temperatures 2,700, 3,000, 3,500, 4,000 and 6,500 K ¦ Useful luminous flux 2,699 lm at Irated and tp = 25 °C ¦ Efficacy of the LED module 203 lm/W at Irated and tp = 25 °C ¦ High colour rendering index CRI > 80 ¦ Small colour tolerance (MacAdam 3) ¦ Small luminous flux tolerances ¦ Module dimension 24 x 140 mm, 24 x 280 mm and 24 x 560 mm (ZHAGA compliant) ¦ Simple installation via clips or screws ¦ Combine Tridonic's LED modules and dimmable drivers to achieve an outstanding system efficacy (configuration possible via https://setbuilder.tridonic.com/)
