LED modules

Name: LED modules
Brand: Tridonic
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	LED modules
Brand	Tridonic
Harmonized System Code	8539 5100 00
ETIM	EC000996
Width	8 mm
Degree of protection (IP)	IP00
Lamp voltage	24 V
Colour temperature	4000 K
Lamp power	1.7 W
Luminous flux	281-300 lm

Packing details

Packing level 1

9006210815206, 9006210815206

Other Technical data

Operating voltage	0 V
Colour of light according to EN 12464-1	Neutral white 3300-5300 K
Operating current	70 mA
External driver required	No

Description

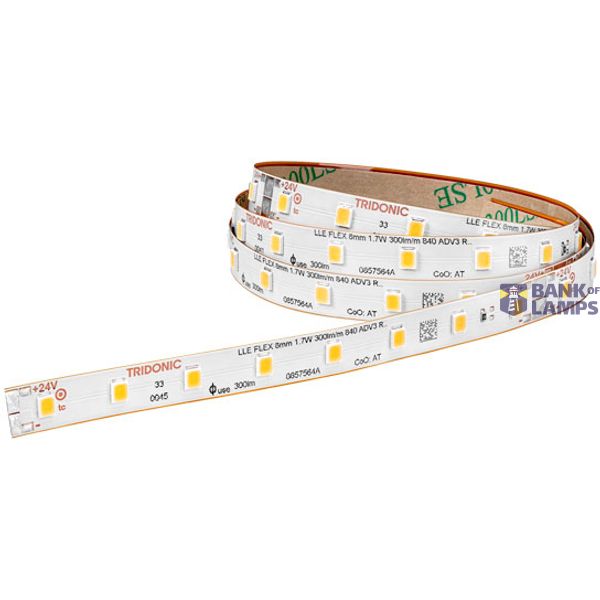

Dimmable 24 V constant voltage LED flextape (SELV) ¦ Ideal for those applications where low lumen output is required such as shelf applications or furniture in general ¦ 1 reel = 5 m or 50 m (5 m reel on-demand) ¦ Long lifetime: 54,000 hours ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Colour temperature 3,000 and 4,000 K with SDCM 3 ¦ Useful luminous flux 300 lm/m at tp = 25 °C ¦ Efficacy of the LED module 180 lm/W at Irated and tp = 25 °C ¦ Low colour temperature tolerances (MacAdam 3) ¦ High design freedom due to 10 cm cut-options ¦ Self-adhesive 3M tape at the backside for simple mounting on different surfaces ¦ Connection only via soldering wires ¦ reel2reel – No solder joints on the tape, easy to separate and low length tolerances ¦ System solution in combination with Tridonic constant voltage LED driver (fixed output and dimmable)
