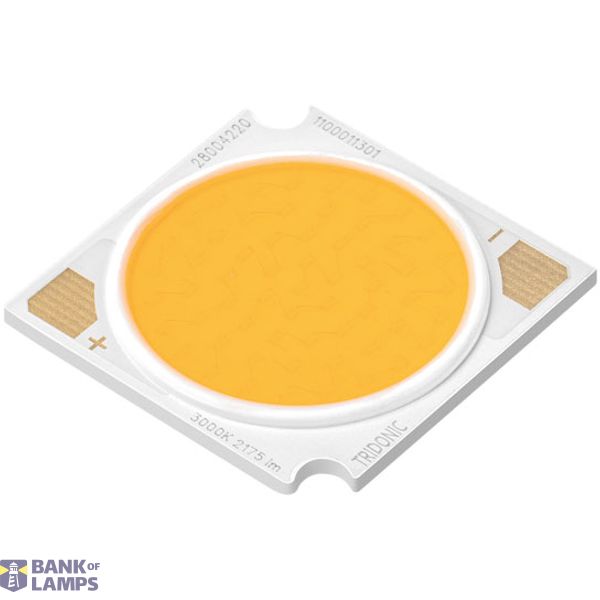

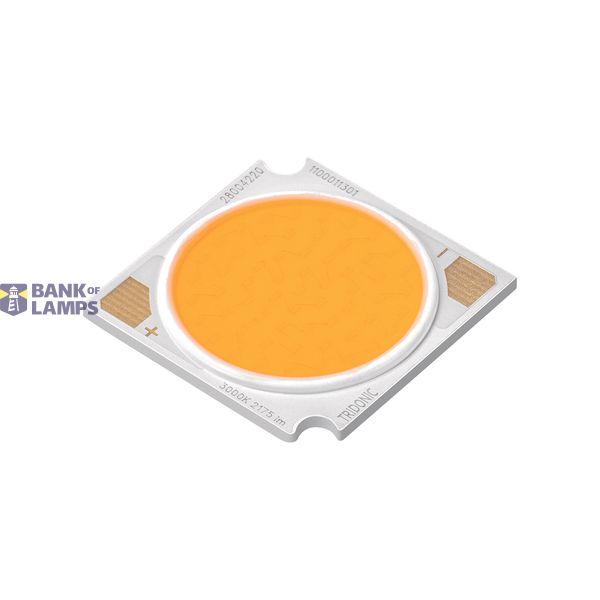

LED modules
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED modules |
| Brand | Tridonic |
| Harmonized System Code | 8539 5100 00 |
| ETIM | EC000996 |
| Width | 19 mm |
| Height | 1.8 mm |
| Diameter | 15 mm |
| Length | 19 mm |
| Degree of protection (IP) | IP00 |
| Lamp voltage | 30.4-39.5 V |
| Colour temperature | 3000 K |
| Luminous flux | 1834-2643 lm |
Packing details
| Packing level 1 | 9006210789071, 9006210789071 |
Other Technical data
| Colour | White |
| Shape | Round |
| Flexible | No |
| Connection type | Solder |
| Voltage type | DC |
| Suitable for traffic lights | No |
| Suitable for variable road signs | No |
| Suitable for rail traffic | No |
| Suitable for matrix information boards | No |
| Operating voltage | 0 V |
| Colour of light according to EN 12464-1 | Warm white <3300 K |
| Number of LEDs | 1 |
| Average nominal lifespan | 60000 h |
| Suitable for general lighting | Yes |
| Suitable for constant current | Yes |
| Suitable for constant voltage | No |
| Operating current | 400-900 mA |
| External driver required | Yes |
| IFTTT support available | No |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG1 |
| Beam angle | 115 ° |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
Description
For spotlights and downlights ¦ For operating with SELV Driver suitable ¦ Excellent thermal management by COB technology ¦ Uniform radiation with Dam&Fill technology ¦ Cooling required ¦ Flexible operating mode ¦ HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output ¦ Long lifetime: 60,000 hours ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Colour temperatures 3,000, 3,500 and 4,000 K ¦ Useful luminous flux 3,200 lm at Irated and tp = 25 °C ¦ Efficacy of the LED module 176 lm/W at Irated and tp = 25 °C ¦ High colour rendering index CRI > 80 and CRI > 90 ¦ Small colour tolerance (MacAdam 3) ¦ Module dimension LES06, LES09 and LES15 ¦ Fixing holes for M2 or M3 screws ¦ Combine Tridonic's LED modules and dimmable drivers to achieve an outstanding system efficacy (configuration possible via https://setbuilder.tridonic.com/)
