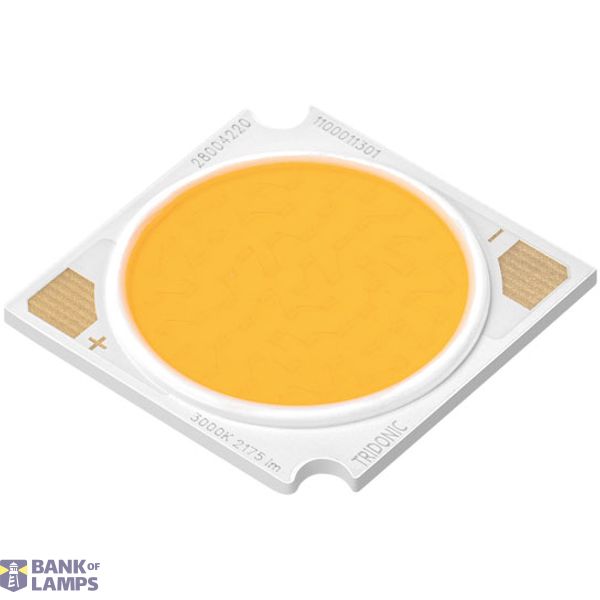

LED modules

Name: LED modules
Brand: Tridonic
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	LED modules
Brand	Tridonic
Harmonized System Code	8539 5100 00
ETIM	EC000996
Diameter	15 mm
Degree of protection (IP)	IP00
Lamp voltage	30.4-39.5 V
Colour temperature	4000 K
Luminous flux	2277-3285 lm

Packing details

Packing level 1

9006210787954, 9006210787954

Other Technical data

Connection type	Solder
Operating voltage	0 V
Colour of light according to EN 12464-1	Neutral white 3300-5300 K
Operating current	400-900 mA
External driver required	No

Description

For spotlights and downlights ¦ For operating with SELV Driver suitable ¦ Excellent thermal management by COB technology ¦ Uniform radiation with Dam&Fill technology ¦ Cooling required ¦ Flexible operating mode ¦ HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output ¦ Long lifetime: 60,000 hours ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Colour temperatures 3,000, 3,500 and 4,000 K ¦ Useful luminous flux 3,200 lm at Irated and tp = 25 °C ¦ Efficacy of the LED module 176 lm/W at Irated and tp = 25 °C ¦ High colour rendering index CRI > 80 and CRI > 90 ¦ Small colour tolerance (MacAdam 3) ¦ Module dimension LES06, LES09 and LES15 ¦ Fixing holes for M2 or M3 screws ¦ Combine Tridonic's LED modules and dimmable drivers to achieve an outstanding system efficacy (configuration possible via https://setbuilder.tridonic.com/)
