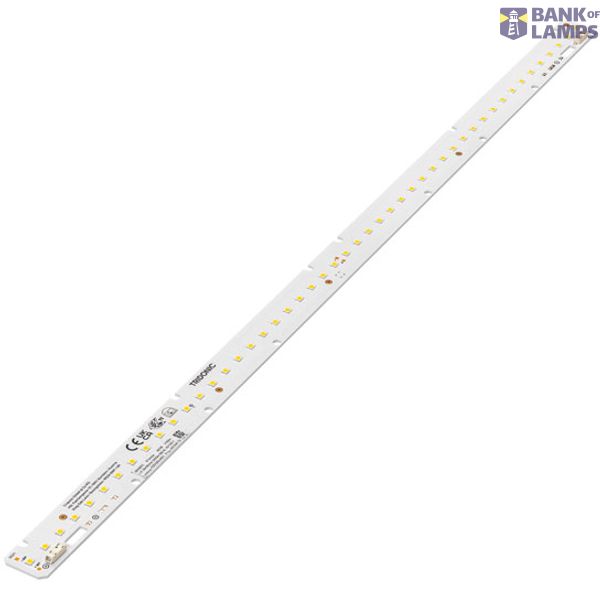

LED modules

Name: LED modules
Brand: Tridonic
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	LED modules
Brand	Tridonic
Harmonized System Code	8539 5100 00
ETIM	EC000996
Width	24 mm
Length	280 mm
Degree of protection (IP)	IP00
Lamp voltage	20.5-23.3 V
Colour temperature	4200 K
Luminous flux	641-1080 lm

Packing details

Packing level 1

9006210787169, 9006210787169

Other Technical data

Connection type	Push-in clamp
Operating voltage	0 V
Colour of light according to EN 12464-1	Neutral white 3300-5300 K
Operating current	200-500 mA
External driver required	No

Description

Ideal for linear and panel lights ¦ 2 terminals for serial wiring ¦ Perfectly uniform light, even if several LED modules are used together in a line ¦ Push terminals for quick and simple wiring of LED module to LED module ¦ Broad portfolio from extruded lenses and covers available ¦ HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output ¦ Long lifetime: 60,000 hours ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Colour temperature 4,200 K ¦ Useful luminous flux 1,080 lm (24 x 280 mm) and 2,160 lm (24 x 560 mm) at Irated and tp = 25 °C ¦ Efficacy of the LED module 150 lm/W at Irated and tp = 25 °C ¦ Melanopic ratio MEER 0.91 ¦ High colour consistency (MacAdam 3) ¦ Small luminous flux tolerances ¦ Module dimension 24 x 280 mm and 24 x 560 mm (ZHAGA compliant) ¦ Simple installation via clips or screws ¦ Combine Tridonic's LED modules and dimmable drivers to achieve an outstanding system efficacy (configuration possible via https://setbuilder.tridonic.com/)
