LED modules
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED modules |
| Brand | Tridonic |
| Harmonized System Code | 8539 5100 00 |
| ETIM | EC000996 |
| Width | 210 mm |
| Height | 6.5 mm |
| Diameter | 220 mm |
| Length | 210 mm |
| Degree of protection (IP) | IP00 |
| Lamp voltage | 33.6-38.1 V |
| Colour temperature | 3000 K |
| Lamp power | 8.79-18.25 W |
| Luminous flux | 1550-2980 lm |
Packing details
| Packing level 1 | 9006210785998, 9006210785998 |
Other Technical data
| Colour | White |
| Shape | Round |
| Flexible | No |
| Connection type | Push-in clamp |
| Voltage type | DC |
| Suitable for traffic lights | No |
| Suitable for variable road signs | No |
| Suitable for rail traffic | No |
| Suitable for matrix information boards | No |
| Operating voltage | 33.6-38.1 V |
| Colour of light according to EN 12464-1 | Warm white <3300 K |
| Average nominal lifespan | 72000 h |
| Suitable for general lighting | Yes |
| Suitable for constant current | Yes |
| Suitable for constant voltage | No |
| Operating current | 250-500 mA |
| External driver required | Yes |
| IFTTT support available | No |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG1 |
| Beam angle | 120 ° |
| Specific luminous efficacy | 163-176 lm/W |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
Description

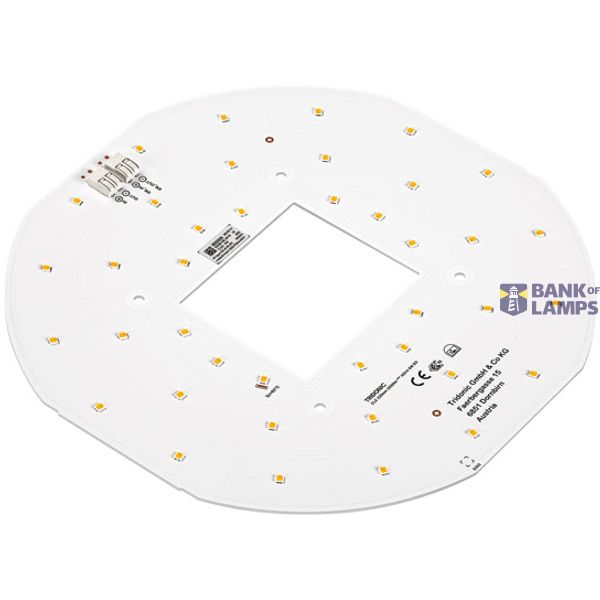

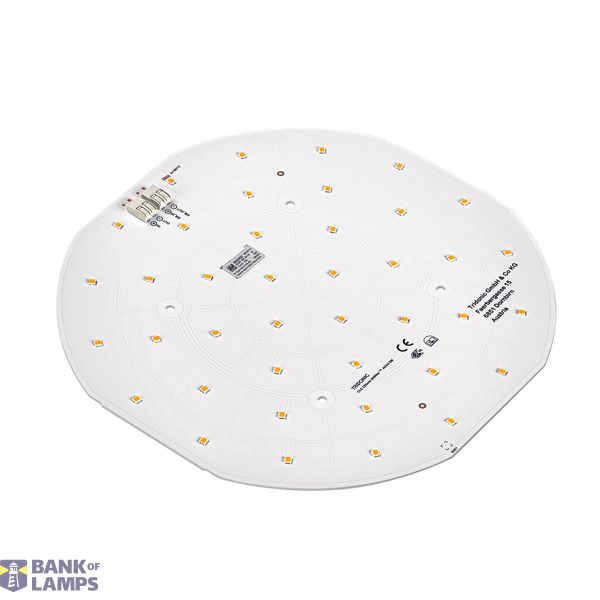

Ideal for ceiling-mounted and wallmounted luminaires ¦ SO version is compatible with SWITCH Sensor HF 5BP ¦ Integrated separate emergency LEDs with CLE 190/220/315/370mm controlled by EM powerLED ¦ Push terminals for quick and simple wiring ¦ HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output ¦ Min. order quantity for CLE 50mm is 10 pcs. and for CLE 80 and 120mm 20 pcs. ¦ Long lifetime up to 72,000 hours ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Colour temperatures 2,700, 3,000 and 4,000 K ¦ Useful luminous flux up to 4,531 lm at Irated and tp = 25 °C ¦ Efficacy of the LED module 199 lm/W at Irated and tp = 25 °C ¦ High colour rendering index CRI > 80 and CRI > 90 ¦ Small colour tolerance (MacAdam 3) ¦ Small luminous flux tolerances ¦ Module dimension ø50, ø80, ø120, ø160, ø190, ø220, ø315 and ø370 mm ¦ Simple installation (e.g. screws) ¦ LED system solution consisting of the LED module, the LED driver with integrated emergency function and SWITCH sensor
