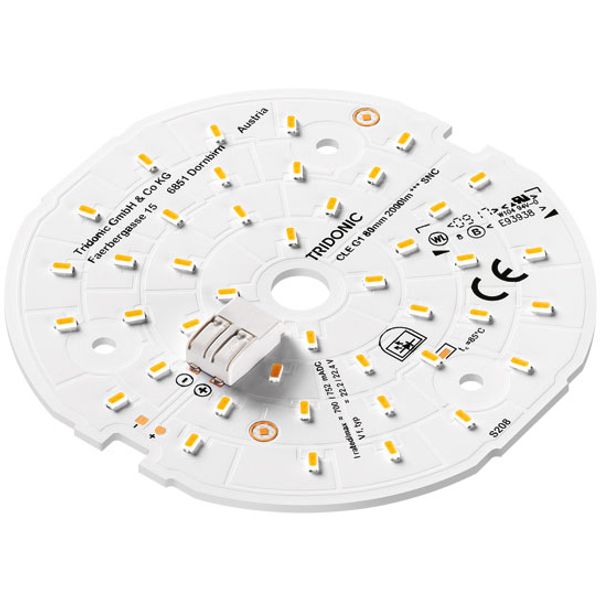

LED modules

Name: LED modules
Brand: Tridonic
Price: 6.520 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

6,52 €

This price is valid until next price list or while stock lasts

EAN: 9006210784557

MPN: 28004162

Package: 1

Estimate delivery time to our warehouse: 2-4 weeks

Technical Information

Item condition	New
Manufacture name	LED modules
Brand	Tridonic
Categories	LED modules
Harmonized System Code	8539 5100 00
Diameter	80 mm
Degree of protection (IP)	IP00
Lamp voltage	30.7-34.8 V
Colour temperature	2700 K
Luminous flux	1120-1663 lm

Packing details

Packing level 1

9006210784557, 9006210784557

Other Technical data

Operating voltage	0 V
Colour of light according to EN 12464-1	Warm white <3300 K
Operating current	250-350 mA
External driver required	No

Description

Ideal for ceiling-mounted and wallmounted luminaires ¦ SO version is compatible with SWITCH Sensor HF 5BP ¦ Integrated separate emergency LEDs with CLE 190/220/315/370mm controlled by EM powerLED ¦ Push terminals for quick and simple wiring ¦ HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output ¦ Min. order quantity for CLE 50mm is 10 pcs. and for CLE 80 and 120mm 20 pcs. ¦ Long lifetime up to 72,000 hours ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Colour temperatures 2,700, 3,000 and 4,000 K ¦ Useful luminous flux up to 4,531 lm at Irated and tp = 25 °C ¦ Efficacy of the LED module 199 lm/W at Irated and tp = 25 °C ¦ High colour rendering index CRI > 80 and CRI > 90 ¦ Small colour tolerance (MacAdam 3) ¦ Small luminous flux tolerances ¦ Module dimension ø50, ø80, ø120, ø160, ø190, ø220, ø315 and ø370 mm ¦ Simple installation (e.g. screws) ¦ LED system solution consisting of the LED module, the LED driver with integrated emergency function and SWITCH sensor
