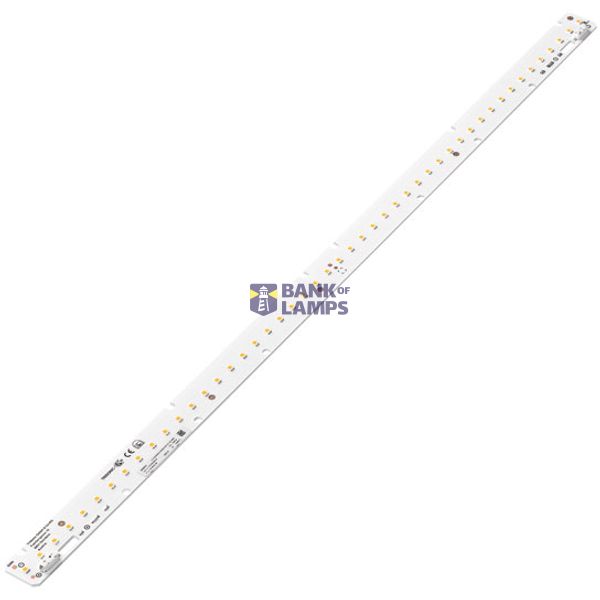

LED modules

Name: LED modules
Brand: Tridonic
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	LED modules
Brand	Tridonic
Harmonized System Code	8539 5100 00
ETIM	EC000996
Width	24 mm
Length	280 mm
Degree of protection (IP)	IP00
Lamp voltage	20.6-23.6 V
Colour temperature	3000 K
Luminous flux	856-1179 lm

Packing details

Packing level 1

9006210771427, 9006210771427

Other Technical data

Operating voltage	0 V
Colour of light according to EN 12464-1	Warm white <3300 K
Operating current	200-500 mA
External driver required	No

Description

Ideal for linear and panel lights ¦ 2 terminals for serial wiring ¦ Perfectly uniform light, even if several LED modules are used together in a line ¦ Push terminals for quick and simple wiring of LED module to LED module ¦ Broad portfolio from extruded lenses and covers available ¦ HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output ¦ Long lifetime up to 72,000 hours ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Colour temperatures 3,000 and 4,000 K ¦ Useful luminous flux 2,529 lm at Irated and tp = 25 °C ¦ Efficacy of the LED module 204 lm/W at Irated and tp = 25 °C ¦ High colour rendering index CRI > 80 ¦ High colour consistency (MacAdam 3) ¦ Small luminous flux tolerances ¦ Module dimension 24 x 280 mm and 24 x 560 mm (ZHAGA compliant) ¦ Simple installation via clips or screws ¦ Combine Tridonic's LED modules and dimmable drivers to achieve an outstanding system efficacy (configuration possible via https://setbuilder.tridonic.com/)
