LED modules

Name: LED modules
Brand: Tridonic
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	LED modules
Brand	Tridonic
Harmonized System Code	8539 5100 00
ETIM	EC000996
Width	8 mm
Degree of protection (IP)	IP00
Colour temperature	4000 K
Lamp power	26.5 W
Luminous flux	3880-4160 lm

Packing details

Packing level 1

9006210766171, 9006210766171

Other Technical data

Operating voltage	0 V
Colour of light according to EN 12464-1	Neutral white 3300-5300 K
Operating current	552 mA
External driver required	No

Description

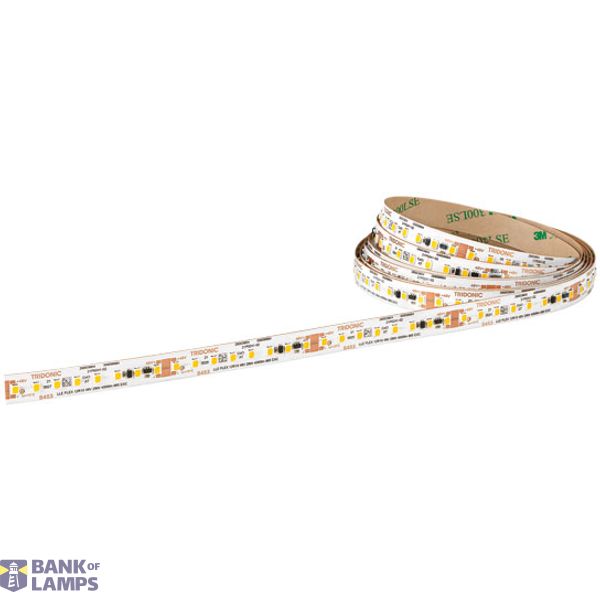

Dimmable 48 V constant voltage LED flextape (SELV) ¦ Ideal for application on aluminium extrusions but also for various decorative lighting applications such as cove lighting, façade accent lighting etc. ¦ 4,000 K module COI approved acc. to AS/NZS1680.2.5:1997 ¦ 1 reel = 10 m ¦ Long lifetime: 60,000 hours ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Colour temperature 2,700, 3,000, 4,000 and 6,000 K with SDCM 3 ¦ Useful luminous flux 4,160 lm/m at tp = 25 °C ¦ Efficacy of the LED module 157 lm/W at tp = 25 °C ¦ High colour rendering index CRI > 80 and CRI > 90 (on demand) ¦ Extremely narrow pitch distance enables short distance to diffuser and outstanding homogeneity ¦ High design freedom due to 6.25 cm cut-options ¦ Self-adhesive 3M tape at the backside for simple mounting on different surfaces ¦ reel2reel – No solder joints on the tape, easy to separate and low length tolerances ¦ System solution in combination with Tridonic constant voltage LED driver (dimmable)
