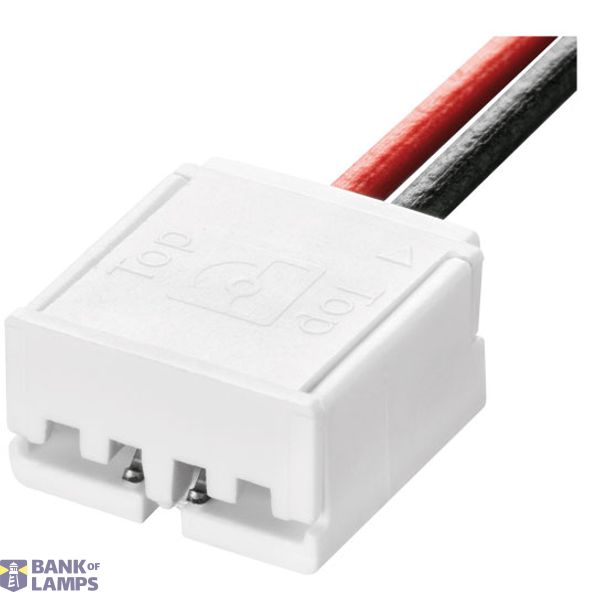

LED modules

Name: LED modules
Brand: Tridonic
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	LED modules
Brand	Tridonic
Harmonized System Code	8539 5100 00
ETIM	EC000996
Width	20 mm
Length	280 mm
Degree of protection (IP)	IP00
Lamp voltage	36-42 V
Colour temperature	2700 K
Luminous flux	273-835 lm

Packing details

Packing level 1

9006210763354, 9006210763354

Other Technical data

Energy efficiency class	A++
Operating voltage	0 V
Colour of light according to EN 12464-1	Warm white <3300 K
Operating current	50-150 mA
External driver required	No

Description

Linear Tunable White LED module with 2,700 and 6,500 K SMT packages ¦ Ideal for linear luminaires ¦ SELV module – the single module has a forward voltage < 60 V ¦ Push terminals for quick and simple wiring ¦ Design for LEDiL DAISY-MINI portfolio ¦ HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output ¦ Orders only in full carton quantities. ¦ Long lifetime up to 72,000 hours ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Colour temperatures 2,700 K to 6,500 K ¦ Useful luminous flux 895 lm at Irated and tp = 25 °C ¦ Efficacy of the LED module 147 lm/W at Irated and tp = 25 °C ¦ High colour rendering index CRI > 90 ¦ High colour consistency (MacAdam 3) ¦ Small luminous flux tolerances ¦ Module dimension 20 x 280 mm ¦ Simple installation of lens and module with M3 screws ¦ Combine Tridonic's LED modules and dimmable drivers to achieve an outstanding system efficacy (configuration possible via https://setbuilder.tridonic.com/)
