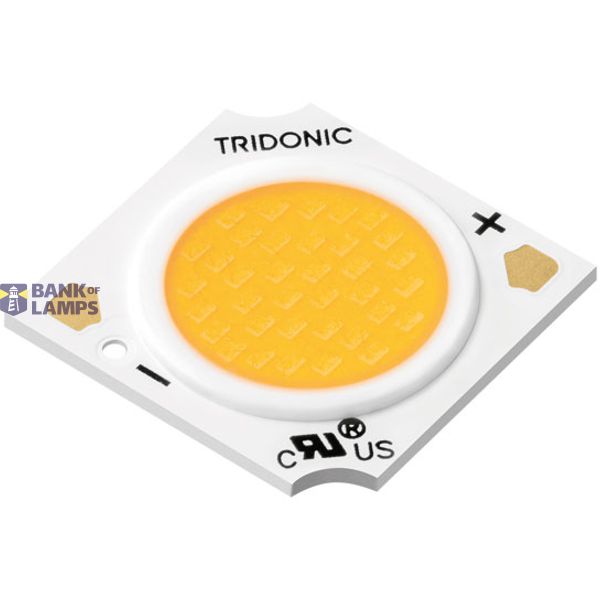

LED modules
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED modules |
| Brand | Tridonic |
| Harmonized System Code | 8539 5100 00 |
| ETIM | EC000996 |
| Diameter | 9 mm |
| Degree of protection (IP) | IP00 |
| Lamp voltage | 32.4-41.5 V |
| Colour temperature | 3100 K |
| Luminous flux | 2046-3050 lm |
Packing details
| Packing level 1 | 9006210743318, 9006210743318 |
Other Technical data
| Energy efficiency class | A+ |
| Operating voltage | 0 V |
| Colour of light according to EN 12464-1 | Warm white <3300 K |
| Operating current | 500-900 mA |
| External driver required | No |
Description
For spotlights and downlights ¦ For operating with SELV Driver suitable ¦ Excellent thermal management by COB technology ¦ Uniform radiation with Dam&Fill technology ¦ Integrated LED module ¦ Cooling required ¦ Flexible operating mode ¦ 4,000 K module COI approved acc. to AS/NZS1680.2.5:1997 ¦ Long lifetime: 55,000 hours ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Colour temperatures 2,700, 3,100, 3,500 and 4,100 K ¦ Useful luminous flux 3,245 lm at Irated and tp = 25 °C ¦ Efficacy of the LED module 126 lm/W at Irated and tp = 25 °C ¦ High colour rendering index CRI > 90 ¦ Small colour tolerance (MacAdam 3) ¦ Module dimension LES09 ¦ Fixing holes for M3 screws ¦ Combine Tridonic's LED modules and dimmable drivers to achieve an outstanding system efficacy (configuration possible via https://setbuilder.tridonic.com/)
