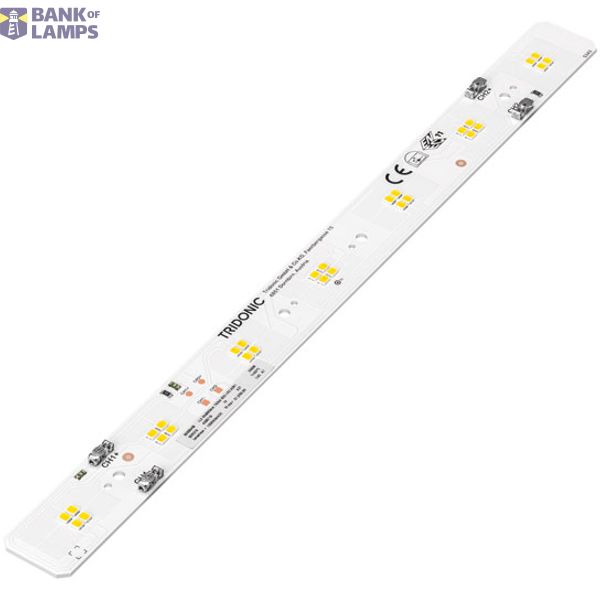

LED modules

Name: LED modules
Brand: Tridonic
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	LED modules
Brand	Tridonic
Harmonized System Code	8539 5100 00
ETIM	EC000996
Width	24 mm
Length	140 mm
Degree of protection (IP)	IP00
Lamp voltage	20.1-23.7 V
Colour temperature	4000 K
Luminous flux	351-370 lm

Packing details

Packing level 1

9006210739861, 9006210739861, 9006210739861

Other Technical data

Energy efficiency class	A++
Operating voltage	0 V
Colour of light according to EN 12464-1	Neutral white 3300-5300 K
Operating current	100-300 mA
External driver required	No

Description

Ideal for linear luminaires ¦ 4 terminals for parallel wiring ¦ SELV module – the single module has a forward voltage < 60 V ¦ Push terminals for quick and simple wiring of LED module to LED module ¦ Design for LEDiL DAISY 4x1 portfolio ¦ HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output ¦ Orders only in full carton quantities. ¦ Long lifetime up to 72,000 hours ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Colour temperatures 3,000 and 4,000 K ¦ Useful luminous flux 370 lm at Irated and tp = 25 °C ¦ Efficacy of the LED module 168 lm/W at Irated and tp = 25 °C ¦ High colour rendering index CRI > 90 ¦ High colour consistency (MacAdam 3) ¦ Small luminous flux tolerances ¦ Module dimension 24 x 140 mm ¦ Simple installation of lens and module with M3 screws ¦ Combine Tridonic's LED modules and dimmable drivers to achieve an outstanding system efficacy (configuration possible via https://setbuilder.tridonic.com/)
