LED modules

Name: LED modules
Brand: Tridonic
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	LED modules
Brand	Tridonic
Harmonized System Code	8539 5100 00
ETIM	EC000996
Width	8 mm
Degree of protection (IP)	IP00
Colour temperature	6500 K
Lamp power	4.8 W
Luminous flux	585-600 lm

Packing details

Packing level 1

9006210639185, 9006210639185

Other Technical data

Energy efficiency class	A++
Operating voltage	0 V
Colour of light according to EN 12464-1	Daylight white >5300 K
Operating current	200 mA
External driver required	No

Description

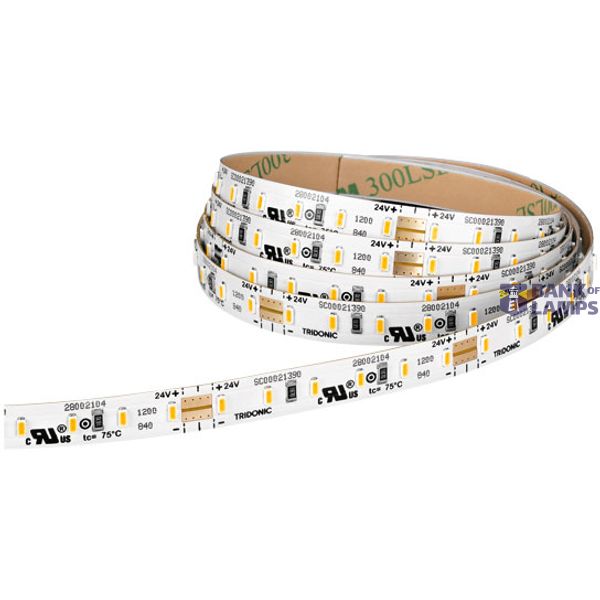

Dimmable 24 V constant voltage LED flextape (SELV) ¦ Ideal for various decorative lighting applications: facade accent lighting, ceiling integration, cove lighting and for aluminium extrusions ¦ Long lifetime: 50,000 hours ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Colour temperature 2,700, 3,000, 4,000 and 6,500 K with SDCM 5 ¦ Luminous flux range of 600, 1,200 and 1,800 lm/m ¦ Efficacy of the module up to 125 lm/W at tp = 65 °C ¦ Pitch distance of 8.3 mm enables high light homogeneity ¦ High design freedom due to 5 cm cut-options ¦ Self-adhesive 3M tape at the backside for simple mounting on different surfaces ¦ PCB to PCB and wire to PCB connectors for toolless handling and connection ¦ System solution in combination with Tridonic constant voltage LED driver (fixed output and dimmable)
