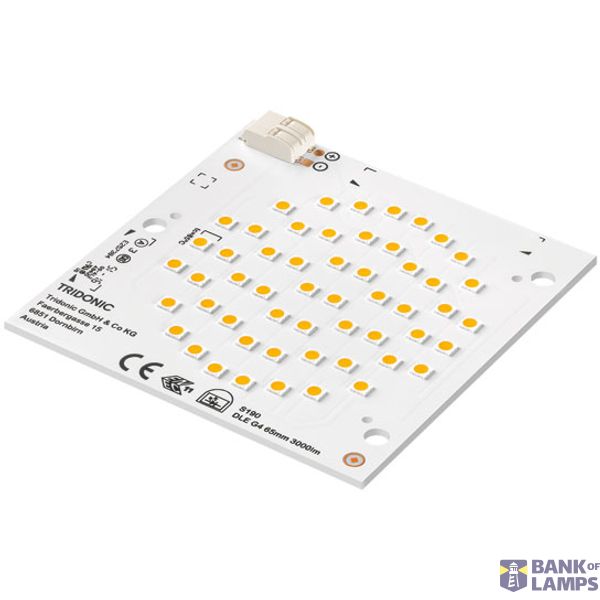

LED modules
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED modules |
| Brand | Tridonic |
| Harmonized System Code | 8539 5100 00 |
| ETIM | EC000996 |
| Diameter | 315 mm |
| Degree of protection (IP) | IP00 |
| Lamp voltage | 32.7-37.8 V |
| Colour temperature | 4000 K |
| Lamp power | 31.5 W |
| Luminous flux | 3953-4231 lm |
Packing details
| Packing level 1 | 9006210630670, 9006210630670 |
Other Technical data
| Energy efficiency class | A++ |
| Operating voltage | 0 V |
| Colour of light according to EN 12464-1 | Neutral white 3300-5300 K |
| Operating current | 900 mA |
| External driver required | No |
Description
Ideal for downlight and decorative ceiling and wall light ¦ Push terminals for quick and simple wiring ¦ Long lifetime: 50,000 hours ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Colour temperatures 3,000 and 4,000 K ¦ Useful luminous flux 4,231 lm at Irated and tp = 25 °C ¦ Efficacy of the LED module 134 lm/W at Irated and tp = 25 °C ¦ High colour rendering index CRI > 80 ¦ Small colour tolerance (MacAdam 4) ¦ Small luminous flux tolerances ¦ Module dimension ø50 mm, ø80 mm, ø120 mm, ø160 mm and ø315 mm ¦ Simple installation (e.g. screws)
