LED modules

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	LED modules
Brand	Tridonic
Harmonized System Code	8544 4290 00
ETIM	EC002955
Type of accessory/spare part	Connector
Accessory	Yes
Spare part	No

Packing details

Packing level 1

9006210604749, 9006210604749

Description

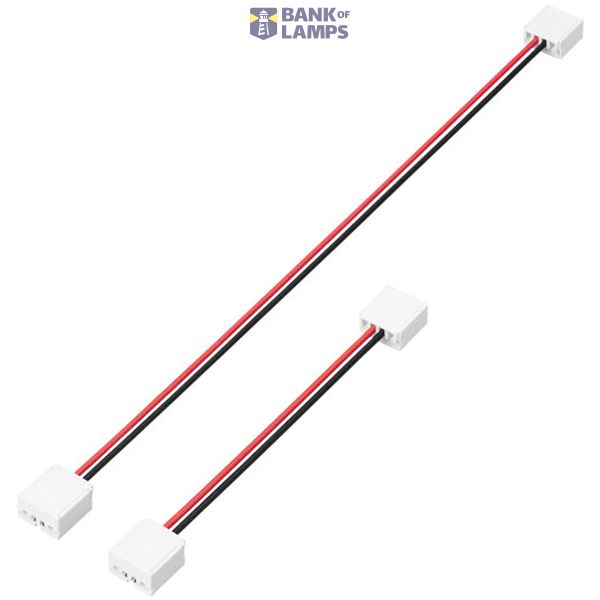

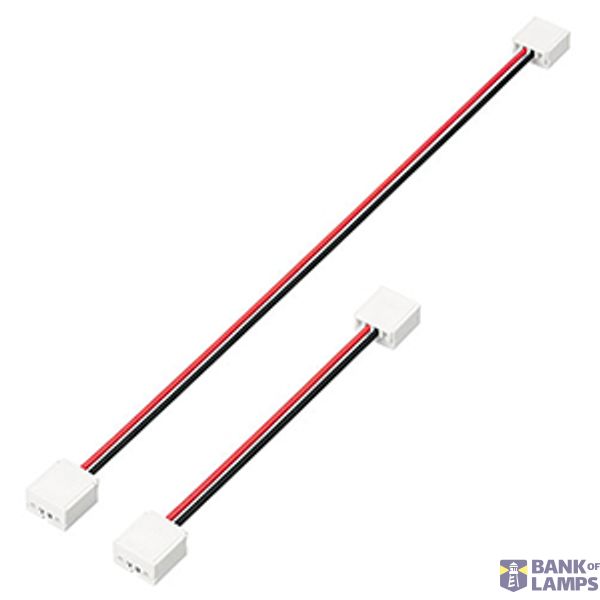

For connection of LLE FLEX 8 mm modules (SNC2, ADV3 and EXC3) ¦ Easy assembly: remove adhesive 3M tape on the backside of the LLE FLEX in the connection area, insert the LLE FLEX into the connector and lock it by pressing down the top of the connector ¦ The insertion length of the LLE FLEX must be at least 4 mm (cut the LLE FLEX at the dotted lines) ¦ Glow wire test according to IEC 60695-2-11: 650 °C ¦ Irated = 5 A ¦ Urated = 29.9 V ¦ Wire cross section AWG 20
