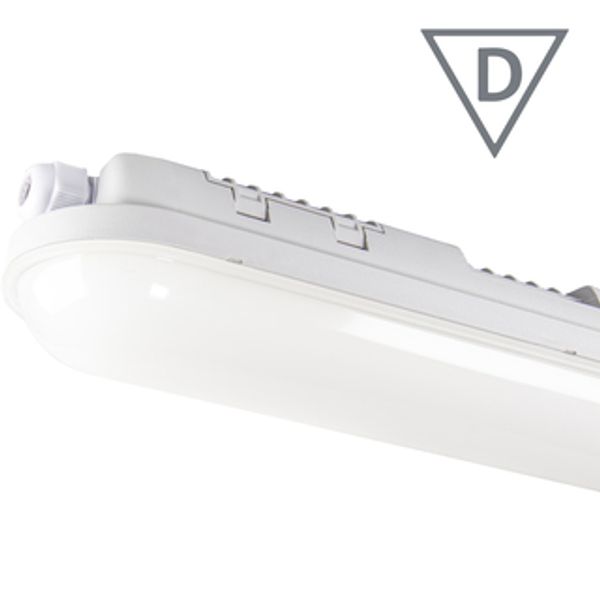

LED Luminaire with Strip - 1x36W 120cm 4800lm 4000K IP65
Discontinued
EAN: 8719323782730
MPN: 2400229_01
Package: 1
No price options are available.
Technical Information
| Item condition | New |
| Manufacture name | LED Luminaire with Strip - 1x36W 120cm 4800lm 4000K IP65 |
| Brand | Shada |
| Categories |
Batten luminaires
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| ETIM | EC000109 |
| Width | 77 mm |
| Colour rendering index CRI | 80-89 |
| Length | 1200 mm |
| Height/depth | 60 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Colour temperature | 4000 K |
| Max. system power | 36 W |
Packing details
| Packing level 1 | 8719323782730 |
Other Technical data
| Protection class | I |
| Colour housing | Grey |
| Voltage type | AC |
| Type of control gear | Electronic ballast |
| With light source | No |
| Nominal current | 193 |
| Colour of light | White |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Energy efficiency class of the provided exchangeable built-in lamp | D |
| Highest energy efficiency class of the exchangeable lamp | D |
| Lowest energy efficiency class of the exchangeable lamp | D |
| Power factor | 0.95 |
Description
A high quality LED fixture with integrated LED strip instead of LED tube. This makes the installation even easier. Link this LED bar together to illuminate a larger space at once. The dust and low pressure water jets protected luminaire (IP65) and the robust impact-resistant polycarbonate housing (IK08) make this luminaire very suitable for damp rooms such as garages, barns, basements, production and market halls. This fixture has a brightness of 4800 lumens, a color temperature of 4000K and an energy consumption of 40W. This product is supplied with 2 connections for wiring through. Environmentally friendly due to low energy consumption and long lifespan.
Replaced by
Order only
33,04 €
MOQ: 1
EAN: 8720604309379
MPN: 2400229_02
Package: 1
Box: 15
Pallet: 270
