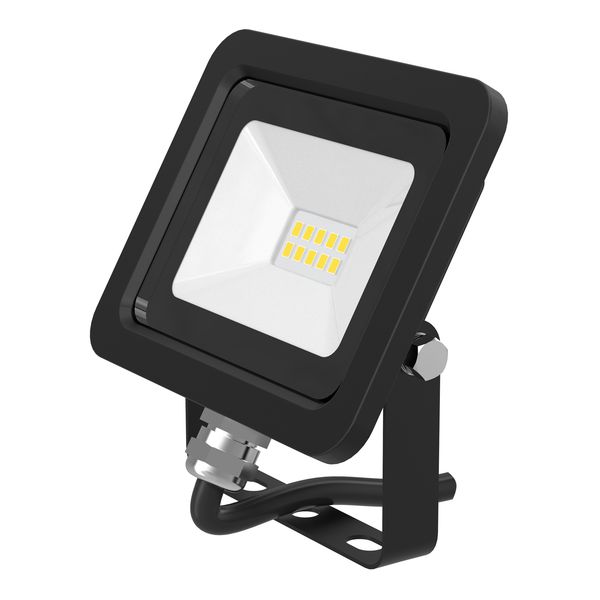

LED Floodlight Slim 10W 3000K
Order only
Price (excl. VAT):
25,24 €
EAN: 8714681404515
MPN: 140451
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | LED Floodlight Slim 10W 3000K |
| Brand | Bailey |
| Categories |
Luminaires
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |

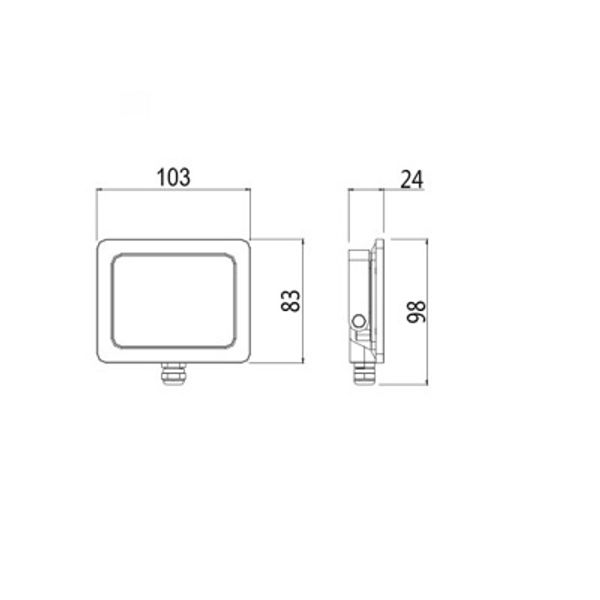

| Width | 83 mm |
| Colour rendering index CRI | 80-89 |
| Length | 103 mm |
| Height/depth | 24 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 3000 K |
| Max. system power | 10 W |
| Rated luminous flux according to IEC 62722-2-1 | 800 lm |
| Luminaire efficacy | 0 lm/W |
Packing details
| Packing level 1 | 8714681404515 |
Other Technical data
| Protection class | I |
| Outer diameter | 0 mm |
| Reflector | Matt |
| Lamp holder | None |
| Conductor cross section | 1 mm² |
| Connection type | Other |
| Colour housing | Black |
| Surface protection | Powder coating |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 10 W |
| Type of control gear | Not required |
| Built-in width | 0 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Luminous intensity | 360 cd |
| Number of poles | 3 |
| Housing material | Aluminium |
| Built-in length | 0 mm |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Glass transparent |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Surface brushed | No |
| Colour of light | White |
| Adjustability | Swivelling |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | Yes |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Luminous flux | 800 lm |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 30000 h |
| Rated life time L80/B10 at 25 °C | 30000 h |
| Colour consistency (McAdam ellipse) | SDCM6 |
| Total harmonic distortion | 0 |
| Photobiological safety according to EN 62471 | RG0 |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -35-45 °C |
| Filament test according to IEC 60695-2-11 | None |
| LED nominal current at constant current | 60 mA |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | None |
| Dimming depending on control gear | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Energy efficiency class of the built-in lamp | Other |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 0 mm |
| Power factor | 0.9 |
Description
The LED Floodlight Slim series from Bailey puts an end to the big spotlights that people know. Because the LED driver is integrated in the module, the housing has become a lot smaller and more elegant without compromising on performance. Because the fixture is protection class IK08 and IP65, it can take a beating. Ambient temperature: -35°C to +45°C. With breather valve to maintain good ingress protection at overpressure.
