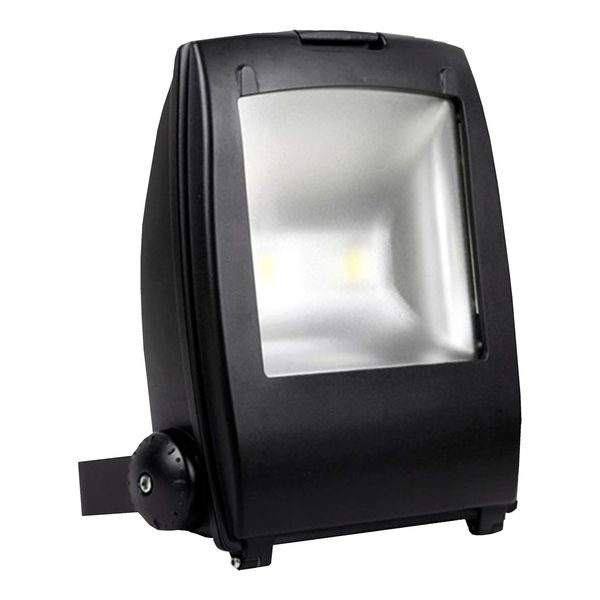

LED Floodlight GJ HQ Black 100-240V 70W 4000K
Order only
Price (excl. VAT):
238,92 €
EAN: 8714681346822
MPN: 90500034682
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | LED Floodlight GJ HQ Black 100-240V 70W 4000K |
| Brand | Bailey |
| Categories |
Luminaires
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Width | 295 mm |
| Colour rendering index CRI | 70-79 |
| Length | 362 mm |
| Height/depth | 99 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 100-240 V |
| Degree of protection (IP) | IP65 |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 70 W |
| Rated luminous flux according to IEC 62722-2-1 | 6500 lm |
| Luminaire efficacy | 0 lm/W |
Packing details
| Packing level 1 | 8714681346822 |
Other Technical data
| Protection class | I |
| Outer diameter | 0 mm |
| Reflector | Matt |
| Lamp holder | None |
| Conductor cross section | 0 mm² |
| Connection type | Other |
| Colour housing | Black |
| Surface protection | Other |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 70 W |
| Type of control gear | LED operating device current-controlled |
| Energy efficiency class | A |
| Built-in width | 0 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Luminous intensity | 2150 cd |
| Number of poles | 3 |
| Housing material | Aluminium |
| Built-in length | 0 mm |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Glass transparent |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Surface brushed | No |
| Colour of light | White |
| Adjustability | Swivelling |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Luminous flux | 6500 lm |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 25000 h |
| Rated life time L80/B10 at 25 °C | 0 h |
| Colour consistency (McAdam ellipse) | SDCM6 |
| Total harmonic distortion | 0 |
| Photobiological safety according to EN 62471 | Other |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -10-40 °C |
| Filament test according to IEC 60695-2-11 | None |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | None |
| Dimming depending on control gear | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Energy efficiency class of the built-in lamp | Other |
| Suitable for ceiling mounting | No |
| Built-in height/depth | 0 mm |
| Power factor | 0 |
Description
The Floodlight is also called a spotlight or construction lamp. The Led version consumes little power and lasts a long time so that they are more durable than the traditional predecessors. Can be mounted on both wall and ceiling. The housing is made of cast aluminum. Comes with 2m connection cable. Suitable for ambient temperatures from -10°C to +40°C. Refer to specifications and warranty for installation.
