LED ECO LITE FLOODLIGHT 20W 865
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED ECO LITE FLOODLIGHT 20W 865 |
| Brand | LEDVANCE |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 4239 00 |
| ETIM | EC001744 |

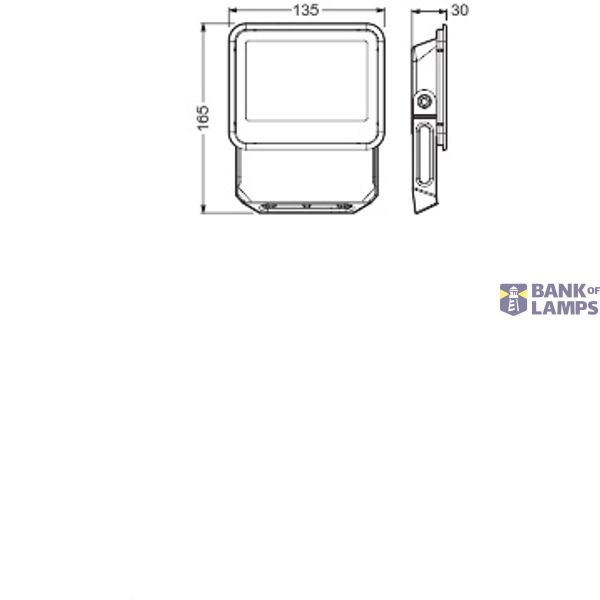

| Width | 30 mm |
| Colour rendering index CRI | 80-89 |
| Length | 135 mm |
| Height/depth | 165 mm |
| Impact strength | IK06 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Colour temperature | 6500 K |
| Max. system power | 20 W |
| Rated luminous flux according to IEC 62722-2-1 | 1700 lm |
| Luminaire efficacy | 85 lm/W |
Packing details
| Packing level 1 | 4058075455580 |
| Packing level 2 | 4058075455597 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Connection type | Push-in clamp |
| Colour housing | Black |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for wall mounting | Yes |
| With light sensor | No |
| Suitable for suspended mounting | Yes |
| Housing material | Aluminium |
| Emergency power supply integrated | No |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for built-in mounting | No |
| With control gear | No |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Surface brushed | No |
| Nominal current | 150 |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 1700 lm |
| Rated life time L70/B50 at 25 °C | 20000 h |
| Photobiological safety according to EN 62471 | RG0 |
| Rated ambient temperature according to IEC62722-2-1 | -20-50 °C |
| LED nominal current at constant current | 150 mA |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming depending on control gear | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | No |
Downloads
Description

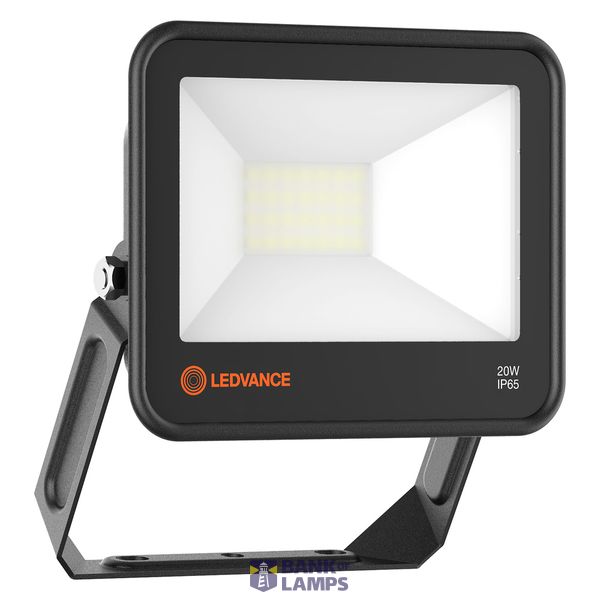

LED floodlight luminaires. Product features: Available with color temperature: 3,000 K, 4,000 K, 6,500 K. Color rendering index Ra: > 80. Stamping aluminum housing. Type of protection, front side: IP65. Impact resistance: IK06 (20W to 70W), IK05 (10W). Lifetime (L70/B50): up to 20,000 h (at 25 °C). Pre-wired with 300 mm mains cable. Product benefits: SMD LED design for high product reliability. Reduced windage area thanks to slim design. Frosted cover made of tempered glass for uniform illumination. Dust and water protection according to IP65. Low maintenance costs thanks to long lifetime. Areas of application: Architectural lighting. Landscape lighting. Billboard lighting. Security lighting.
