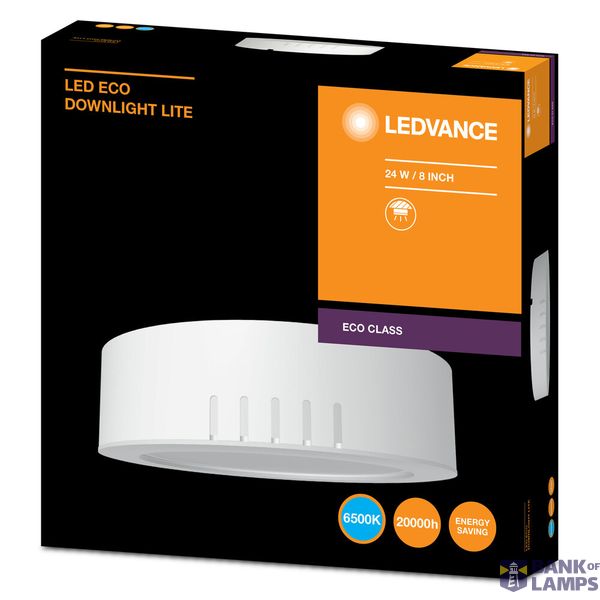

LED ECO DOWNLIGHT LITE SR80 SR80 24W 865
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED ECO DOWNLIGHT LITE SR80 SR80 24W 865 |
| Brand | LEDVANCE |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 4231 00 |
| ETIM | EC001744 |
| Width | 215 mm |
| Colour rendering index CRI | 80-89 |
| Length | 215 mm |
| Height/depth | 45 mm |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 6500 K |
| Max. system power | 24 W |
| Rated luminous flux according to IEC 62722-2-1 | 2000 lm |
| Luminaire efficacy | 83 lm/W |
Packing details
| Packing level 1 | 4058075530355 |
| Packing level 2 | 4058075530362 |
Other Technical data
| Protection class | II |
| Outer diameter | 215 mm |
| Reflector | None |
| Colour housing | White |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for wall mounting | Yes |
| With light sensor | No |
| Number of poles | 2 |
| Material cover | Plastic, opal |
| Emergency power supply integrated | No |
| Suitable for built-in mounting | No |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Surface brushed | No |
| Nominal current | 198 |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| IFTTT support available | No |
| Luminous flux | 2000 lm |
| Rated life time L70/B50 at 25 °C | 20000 h |
| Rated ambient temperature according to IEC62722-2-1 | -20-45 °C |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming DSI | No |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Suitable for ceiling mounting | No |
| Power factor | 0.5 |
Downloads
Description
Downlights. Product features: Available with color temperature in whole product family: 3,000K, 4,000K, 6,500K. Color rendering index Ra: > 80. Best in color consistency: SDCM≤6. Flicker free. Lifetime (L70/B50): up to 20,000 h. Type of protection: IP40 (front) - IP20. Protection class: II. Direct connection to AC power supply thanks to integrated control gear. Fulfill EMC requirement. Mercury-free and RoHS compliant. Areas of application: Corridors. Entrance areas. Foyers. Stairwells. Elevators.
