LED drivers
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED drivers |
| Brand | Tridonic |
| ETIM | EC002710 |
| Width | 30 mm |
| Height | 21 mm |
| Length | 210 mm |
| Output voltage | 0 V |
| Output power | 40-61.3 W |
| Degree of protection (IP) | IP20 |
| Output current | 200-350 mA |
| No dim function | Yes |
Packing details
| Packing level 1 | 9006210826004, 9006210826004 |
Other Technical data
| Suitable for outdoor use | No |
| Suitable for DC-voltage (primary side) | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming DSI | No |
Description

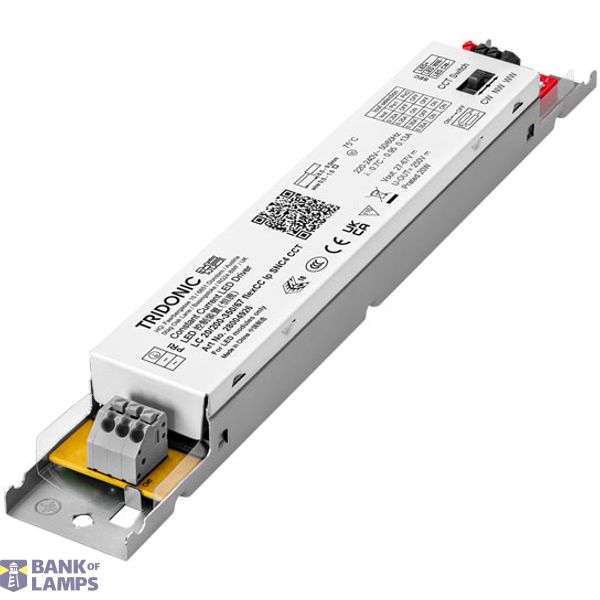

LED Constant current LED driver for luminaire installation ¦ For class I luminaires ¦ Temperature protection as per EN 61347-2-13 C5e ¦ Selectable fixed output current 350, 300, 250 and 200 mA ¦ Max. output power 61.3 W ¦ Up to 91 % efficiency ¦ Nominal lifetime up to 50,000 h ¦ 3 years guarantee (conditions at www.tridonic.com) ¦ Casing: metal, white ¦ Type of protection IP20 ¦ Overload protection ¦ Short-circuit protection ¦ No-load protection
