LED drivers

Order only

EAN: 9006210802282

MPN: 87501064

Package: 1

Price (excl. VAT)

22,85 €

per unit

MOQ: 1

EDT to our warehouse: 2-4 weeks

This price is valid until next price list or while stock lasts

Technical Information

Item condition	New
Manufacture name	LED drivers
Brand	Tridonic
Categories	LED drivers
ETIM	EC002710
Width	30 mm
Height	21 mm
Length	280 mm
Output voltage	0 V
Degree of protection (IP)	IP20
Output current	915-1000 mA
No dim function	No

Packing details

Packing level 1

9006210802282, 9006210802282, 9006210802282

Other Technical data

Suitable for outdoor use	No
Suitable for DC-voltage (primary side)	No
Dimming 0-10 V	Yes
Dimming 1-10 V	No
Dimming DALI	No
Dimming DMX	No
Dimming potentiometer (integrated)	No
Dimming GPRS	No
Dimming LineSwitch	No
Dimming manufacturer's proprietary system	No
Dimming mains voltage modulation	No
Dimming phase cut-off	No
Dimming phase cut-on	No
Dimming programmable	No
Dimming RF	No
Dimming Sine Wave Reduction	No
Dimming Touch and Dim	No
Dimming Zigbee	No
Dimming with push-button	No
Dimming DSI	No

Description

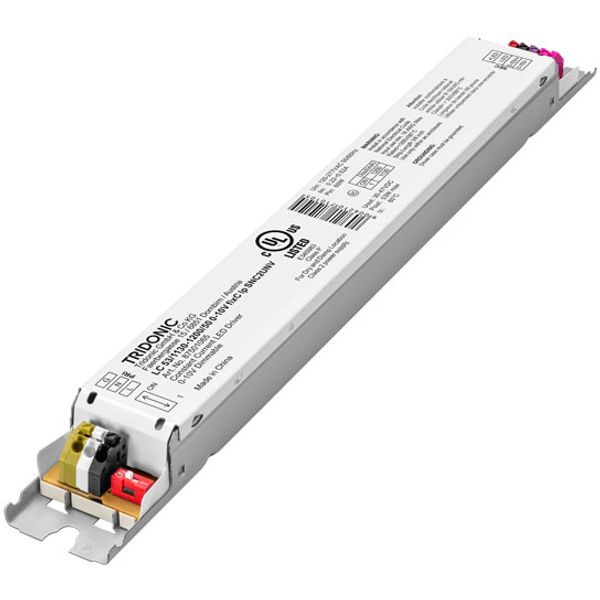

Constant current LED driver ¦ Only for US applications ¦ Dimmable via 0 ... 10 V ¦ Dimming range 10 to 100 % ¦ Class 2 ¦ Meets DesignLights Consortium 4.3 ¦ Certified to UL Listed Class P ¦ Adjustable output current 915 or 1,000 mA ¦ Max. output power 43 W ¦ Nominal lifetime up to 50,000 h ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Casing: metal, white ¦ Type of protection IP20 ¦ Dry and damp location ¦ Overload protection ¦ Short-circuit protection ¦ No-load protection ¦ Overtemperature protection
